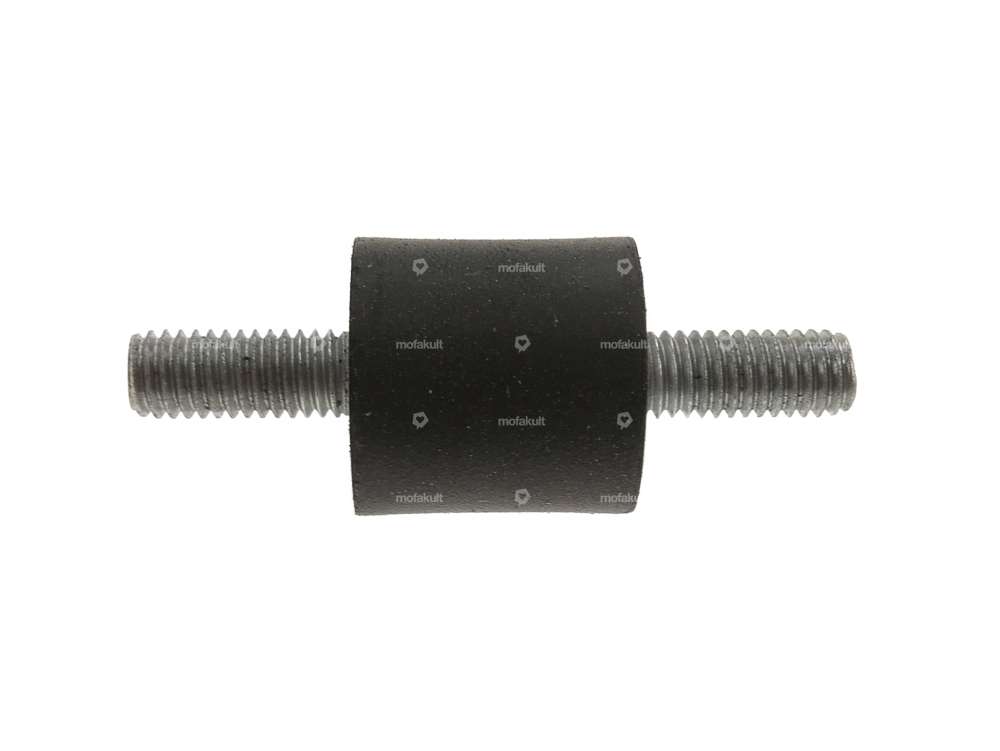

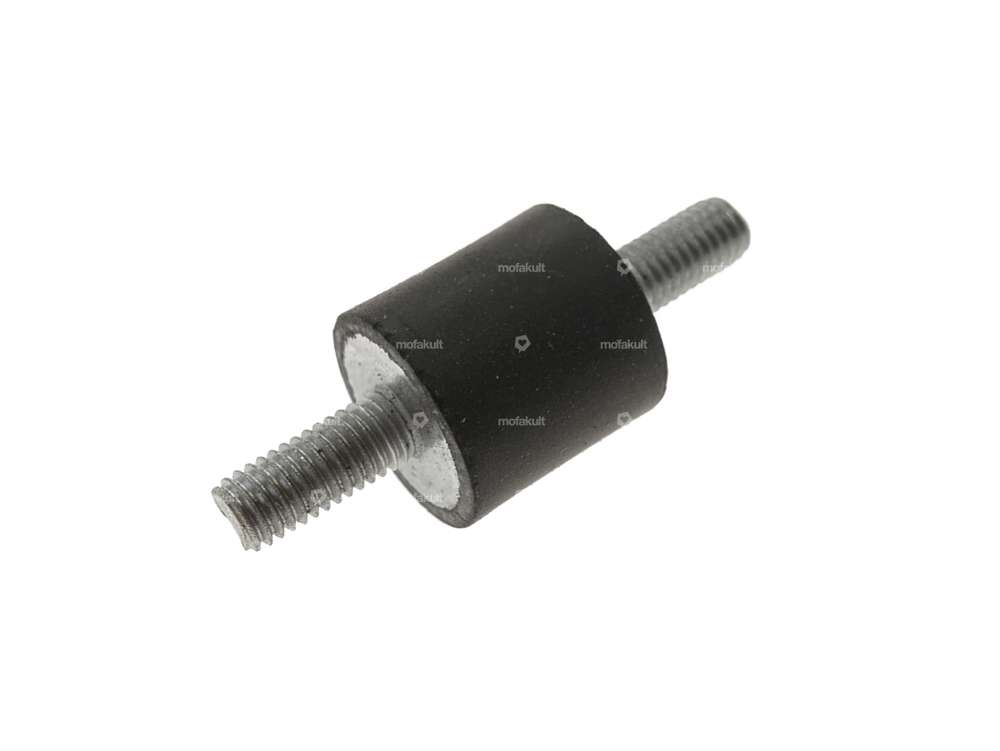

Vibration damper M5 (two external threads)

Chrome mirror

Material: Steel · Surface: chrome-plated · Thread size: M8 · Thread type: M8x1.25 (standard thread) · Color: Chrome · Ø mirror surface: 96 mm · Ø mirror rod: 7 mm · Total length: 285 mm · Mirror rod length: 230 mm · Clamping diameter: 22 mm

Wippermann drive chain No.18 (double reinforced)

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: Wippermann · Material: Steel · Surface: blank / oiled · Number of chain links: 114 pcs · Rolling circumference: 1448 mm · Chain lock type: Spring lock · Color: gray · Ø bore: 4.2 mm · Ø Pin: 4.15 mm

GPO sprocket 45 teeth black | Puch Maxi, Puch X30 NG-2AH

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Thickness: 4.5 mm · Manufacturer: GPO · Material: Steel · Surface: powder-coated · Number of teeth: 45 pcs · Color: black · Number of fixing points: 6 pcs · Hole spacing: 36.5 mm · Ø inside: 94 mm · Hole spacing 2: 68 mm · Ø bolt circle: 105.5 mm · Ø mounting hole: 6.7 mm · Cranking (offset): 8 mm

Dell'Orto 19 mm PHBG CS carburetor hand choke

Width: 70 mm · Nominal diameter: 19 mm · Manufacturer: Dell'Orto · Material: Aluminum · Area of application: Racing · Area of application: Tuning · Component group Carburetor: Carburetor complete · Carburetor type: PHBG CS · Choke control: Hand choke · Color: black · Nozzle thread: M5x0.8 (standard thread) · Mounting type: Plug connection clamped · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Ø without reducing sleeve: 26 mm · Nozzle size: 75 · Ø Inside entrance: 19 mm · Ø Internal connection: 24 mm · Ø Output inside: 19 mm · Ø Air filter connection: 32 mm · Ø Air filter connection: 60 mm · Height: 124 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Total length: 82 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Choke nozzle size: 60 · Camouflaged: No · Size of secondary nozzle: 45

CEAB voltage regulator 12V CDI ignition

Manufacturer: CEAB · Material: Plastic · Tension: 12 V · Type of current: Alternating current (AC) · Mounting type: Screws · Ø mounting hole: 6 mm

Wippermann chain lock pedal chain standard

Manufacturer: Wippermann · Material: Steel · Color: black · Chain type: 410 · Number of chain links: 1 pcs · Chain pitch: 1/2" x 1/8" · Chain lock type: Spring lock

Vibration damper M5 (two internal threads)

Ø outside: 14.7 mm · Total length: 15 mm · Thread type: M5x0.8 (standard thread) · Manufacturer: Made in Europe · Thread length: 5 mm · Color: black · Material: Rubber · Material: Steel

Vibration damper M6 (two internal threads)

Ø outside: 19.6 mm · Total length: 15 mm · Thread type: M6x1 (standard thread) · Manufacturer: Made in Europe · Thread length: 6 mm · Color: black · Material: Rubber · Material: Steel

Vibration damper M6 (two external threads)

Ø outside: 14.7 mm · Total length: 30 mm · Height: 10 mm · Thread type: M6x1 (standard thread) · Manufacturer: Made in Europe · Thread length: 10 mm · Color: black · Material: Rubber · Material: Steel

Vibration damper M8 (two external threads)

Ø outside: 25 mm · Total length: 50 mm · Height: 10 mm · Thread type: M8x1.25 (standard thread) · Manufacturer: Made in Europe · Thread length: 20 mm · Color: black · Material: Rubber · Material: Steel
