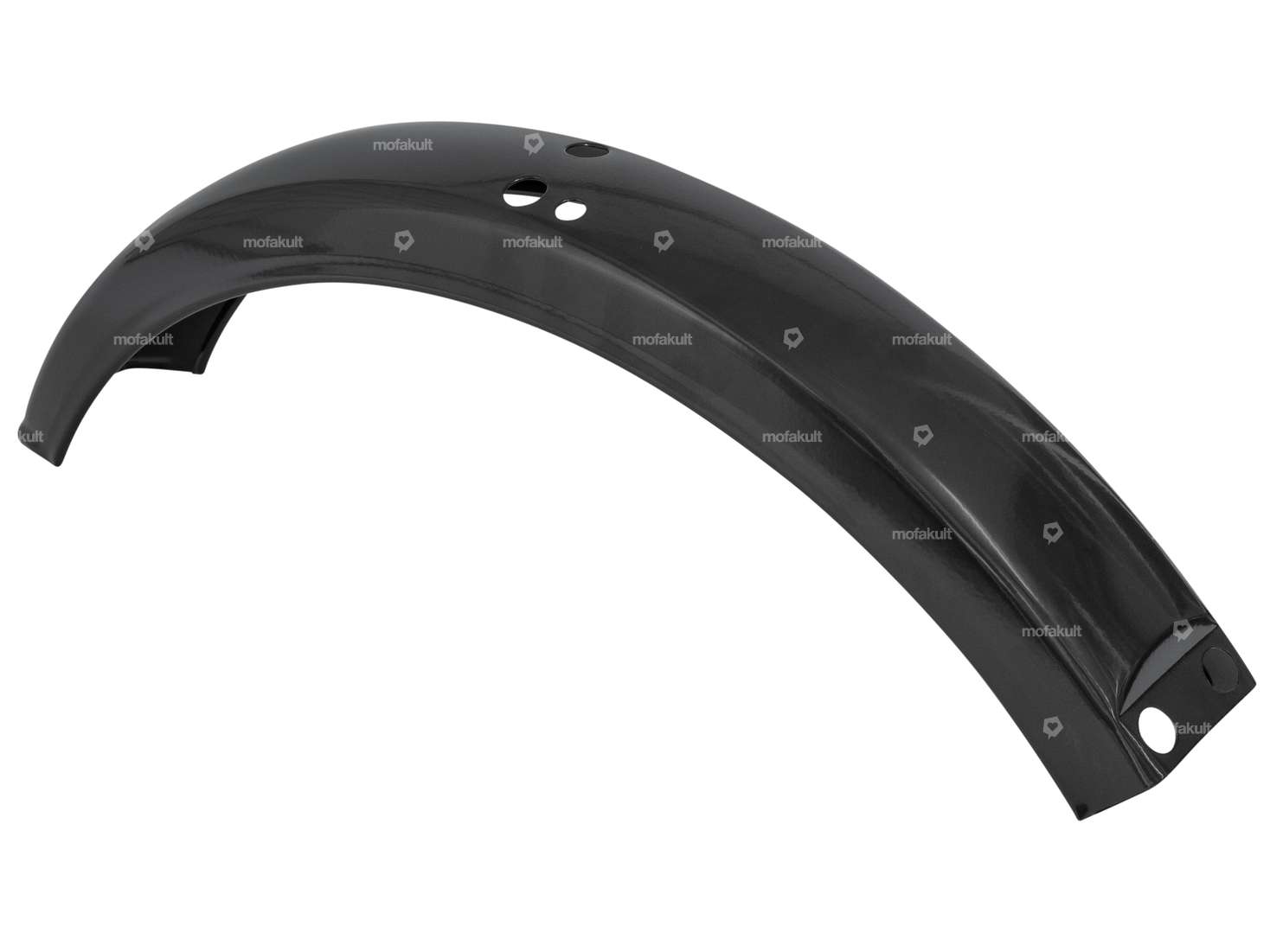

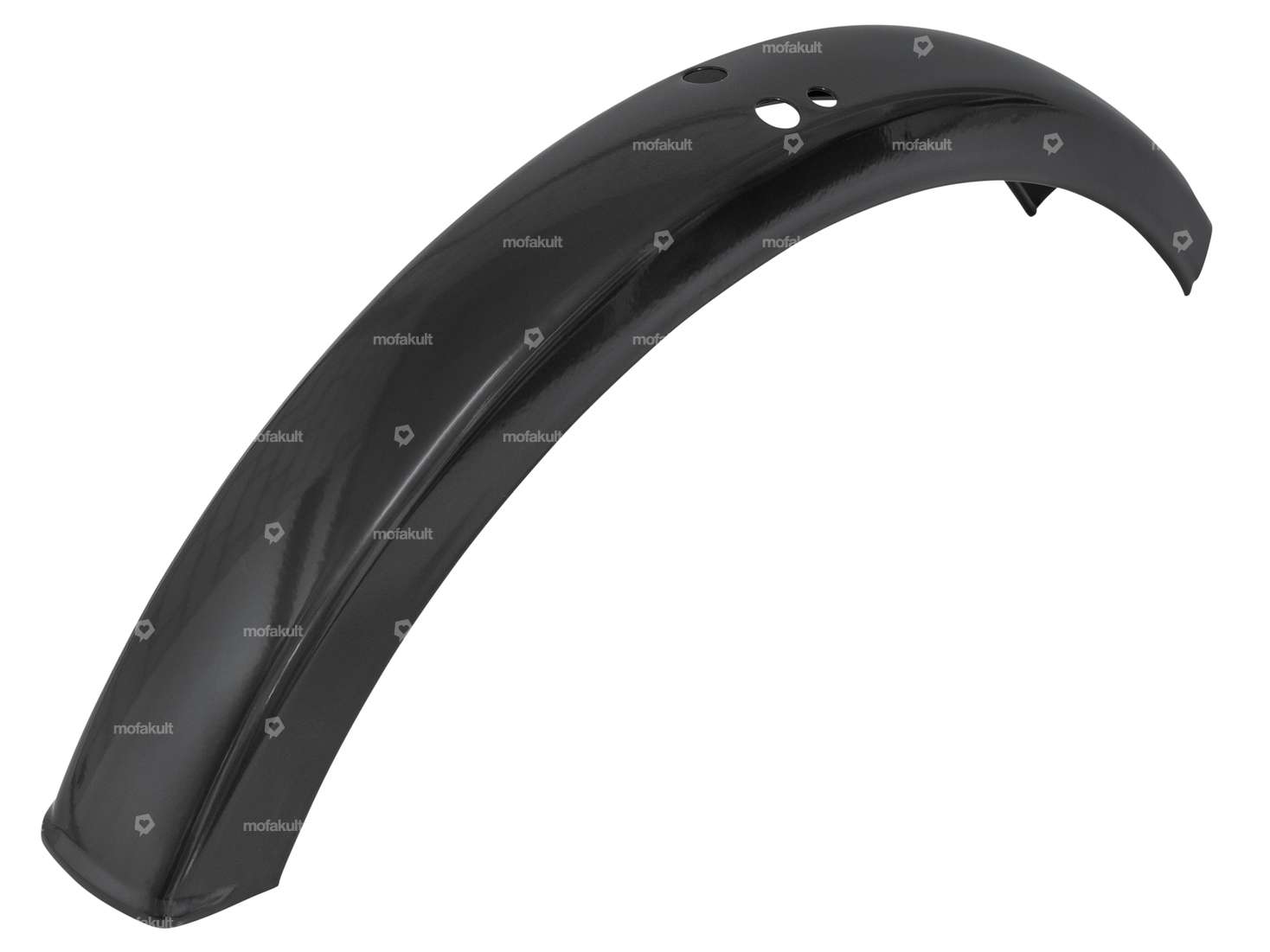

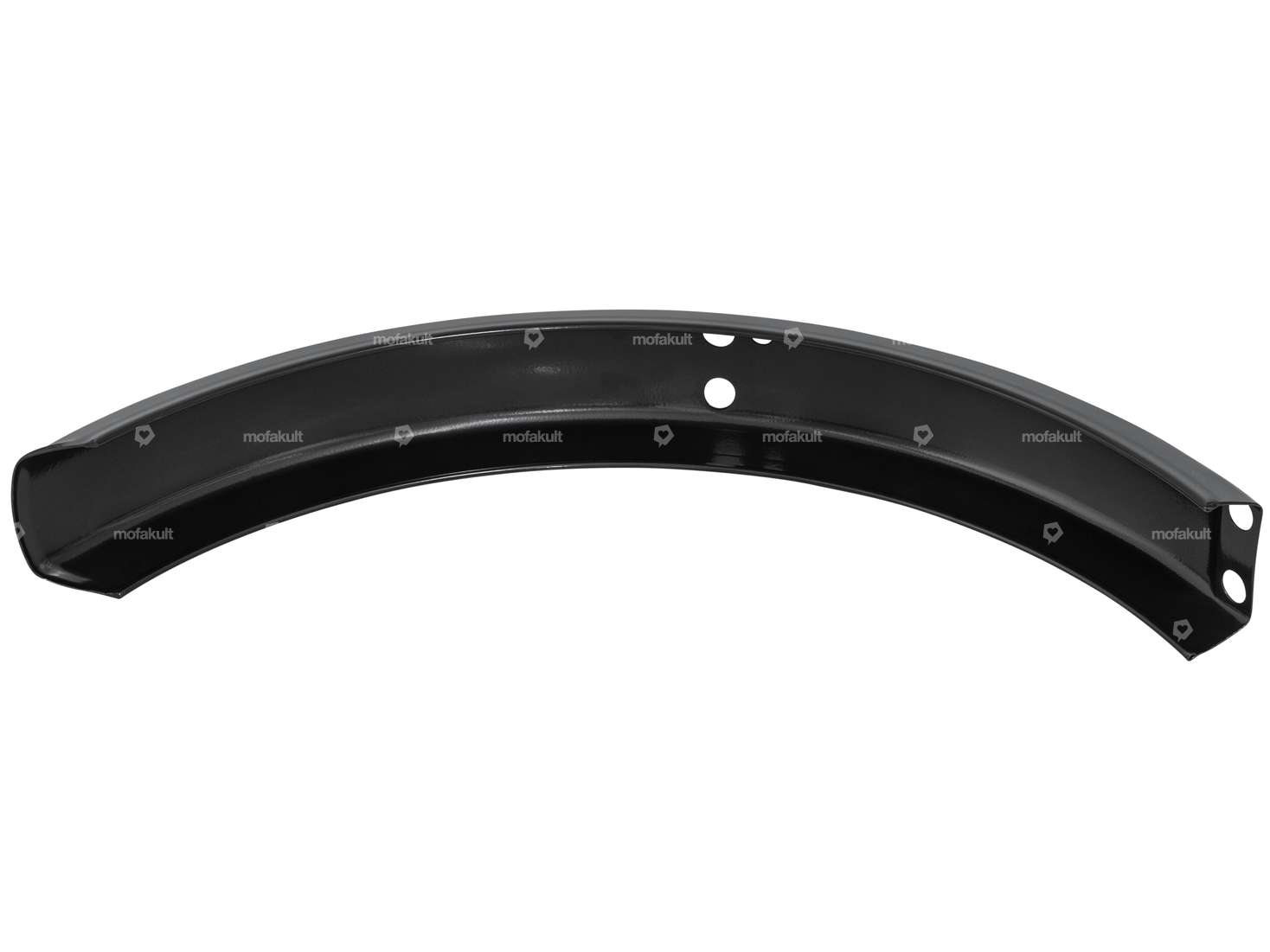

Rear, black primed steel mudguard for your Piaggio Ciao moped / moped with 16" or 17" rims.
Since the mudguard is folded at the rear, there is no sharp edge, which significantly reduces the risk of injury.
The mudguard has all the original mounting holes and the channel for the cable routing.
Shape: part-round
Width of mudguard profile (A): 76 mm
Height of mudguard profile (B): 35 mm
Endings: not folded at the front / folded open at the rear
Material: Steel, black primed
Total height from support surface to top edge (C): 159 mm
Total length over ends (D): 510 mm
Circumference (E): 620 mm
The mudguard is only primed, i.e. there may be slight scratches.
Other parts for your wheel fairing, such as paint polish or fastening material, can be found under accessories.
Nostalgic product for the highest demands of the quality brand swiing®.
Original Piaggio spare part number: 576135
Details
| Manufacturer | swiing® revival parts |
| Material | Steel |
| Surface | primed |
| Wheel size [inch] | 16 ", 17 " |
| Folding the ends | not folded, open folded |
| Shape of the mudguard | partly round |
| Total length over ends | 510 mm |
| Scope | 620 mm |
| Wide mudguard profile | 76 mm |
| Height of mudguard profile | 35 mm |
| Color | black |
| Total height from support surface to top edge | 159 mm |
| Mounting type | Nuts & bolts |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 |
