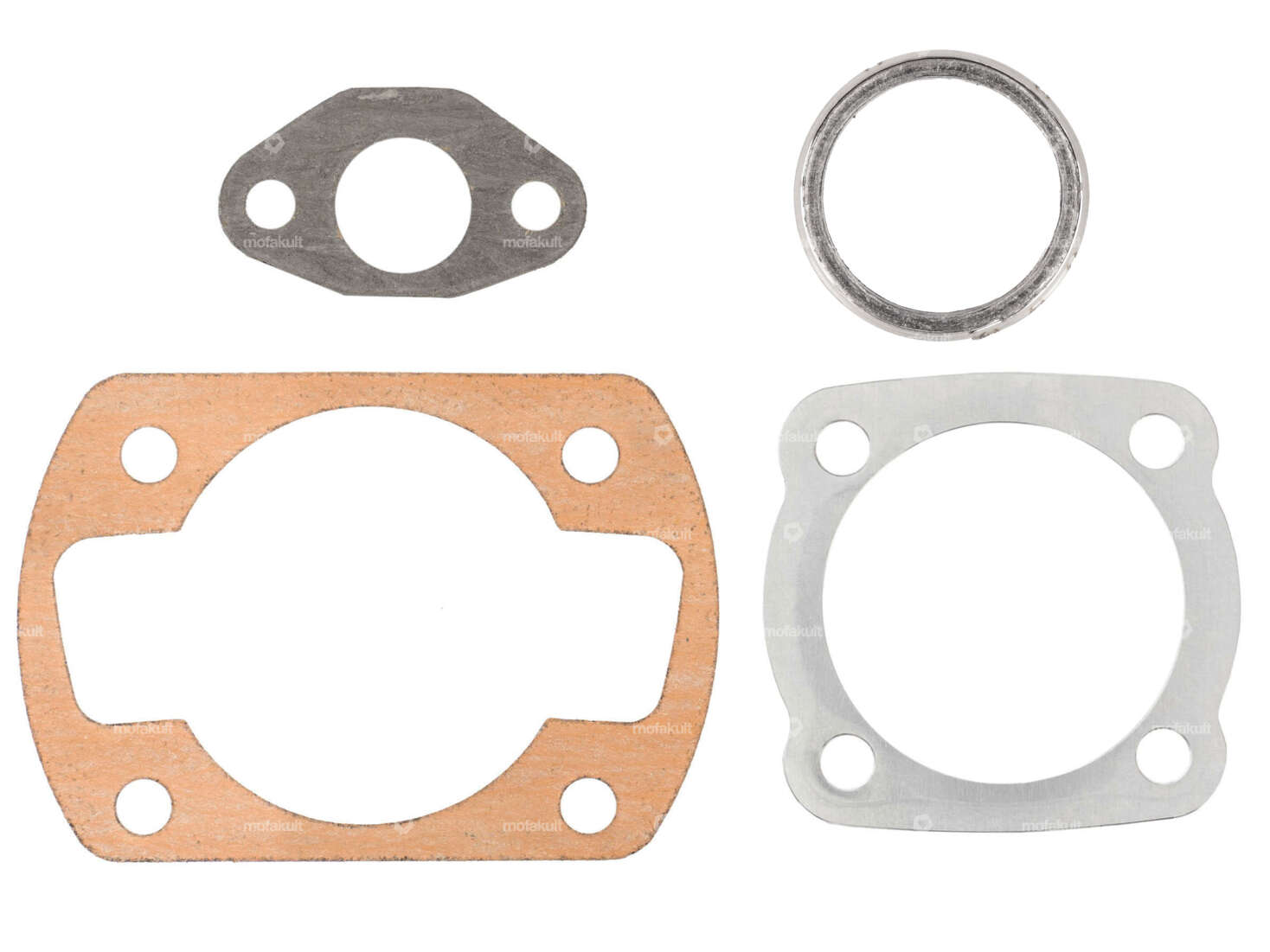

swiing® ingenious 41 mm gasket set cylinder | Sachs 50/2, 50/3, 50/4 (DE version)

Elring Curil T2 sealing compound 70 ml green (polyurethane) non-hardening

Manufacturer: Elring · Area of application: Chemistry · Color: green · Contents [ml]: 70 ml · Gap dimension (max.): 0.2 mm · Temperature resistance (min.): -55 - 250 °C

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents [ml]: 1000 ml · Color: green · Area of application: Standard

Elring Dirko HT sealing compound gray (silicone) 70 ml permanently elastic up to 315°C

Temperature resistance (min.): -60 - 315 °C · Manufacturer: Elring · Material: Silicone · Contents [ml]: 70 ml · Hazard warning: Causes damage to organs through prolonged or repeated exposure · Color: gray · Gap dimension (max.): 2 mm · Area of application: Chemistry

swiing® ingenious piston 41 mm | Sachs 50/2

Manufacturer: swiing® ingenious parts · Nominal diameter: 41 mm · Ø outside piston (A): 40.96 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3.4 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Piston weight: 91 g

swiing 41 mm cylinder kit Racing fan-cooled (Version 2.0) | Sachs 50/2, 50/3, 50/4 (DE)

Nominal diameter: 41 mm · Manufacturer: swiing · Material: Aluminum · Area of application: Racing · Surface: sandblasted · Crankshaft stroke: 42 mm · Displacement: 55 ccm · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Thread inlet: M5x0.8 (standard thread) · Hole pattern [mm]: 51 x 40 · Number of fixing points: 4 pcs · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Camouflaged: No

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Thread type: MF12x1 (fine pitch thread) · Material lever: Metal · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm · Mounting type: Union nut

swiing® revival gasket cylinder base 0.3 mm | Sachs 50, 50/3, 50/4 DE engines

Manufacturer: swiing® revival parts · Material: Oiled paper · Thickness: 0.5 mm · Place of use: Cylinder base · Hole pattern [mm]: 40.5 x 51

32 mm copper ring 30.6/37.8 flame tube | Sachs

Material: Copper · Ø inside: 30.6 mm · Ø outside: 37.8 mm

Inlet seal 17 mm spigot (5.5 mm) | Sachs 50/3

Thickness: 5.5 mm · Place of use: Admission · Hole spacing inlet: 30 mm

Clutch lever | Sachs 50/3, 50/4

Material: Steel · Area of application: Standard

Manual indoor cable set

Manufacturer: Made in Germany · Material: Steel · Ø Stranded wire: 1.2 mm · Ø Stranded wire: 1.25 mm · Ø Stranded wire: 1.5 mm · Ø Stranded wire: 1.8 mm · Quantity: 4 pcs · Nipple shape: Barrel (transverse) · Nipple shape: Cylinder · Nipple shape: Pears · Total length: 2200 mm

swiing® revival gasket 0.4 mm gearbox cover | Sachs 502, 50/2, 50/3, 50/4 (A1827)

Manufacturer: swiing® revival parts · Material: Sealing paper · Thickness: 0.4 mm · Color: sand-colored · Number of components: 1 pcs · Number of fixing points: 5 pcs · Total length: 210 mm · Width: 130 mm · Pony OEM number: A1827 · Sachs OEM no.: 0250 087 100

Inlet gasket 2.6 mm Bing 17 mm | Sachs 50/3

Thickness: 2.6 mm · Place of use: Admission · Hole spacing inlet: 30 mm
