For: Piaggio

20824

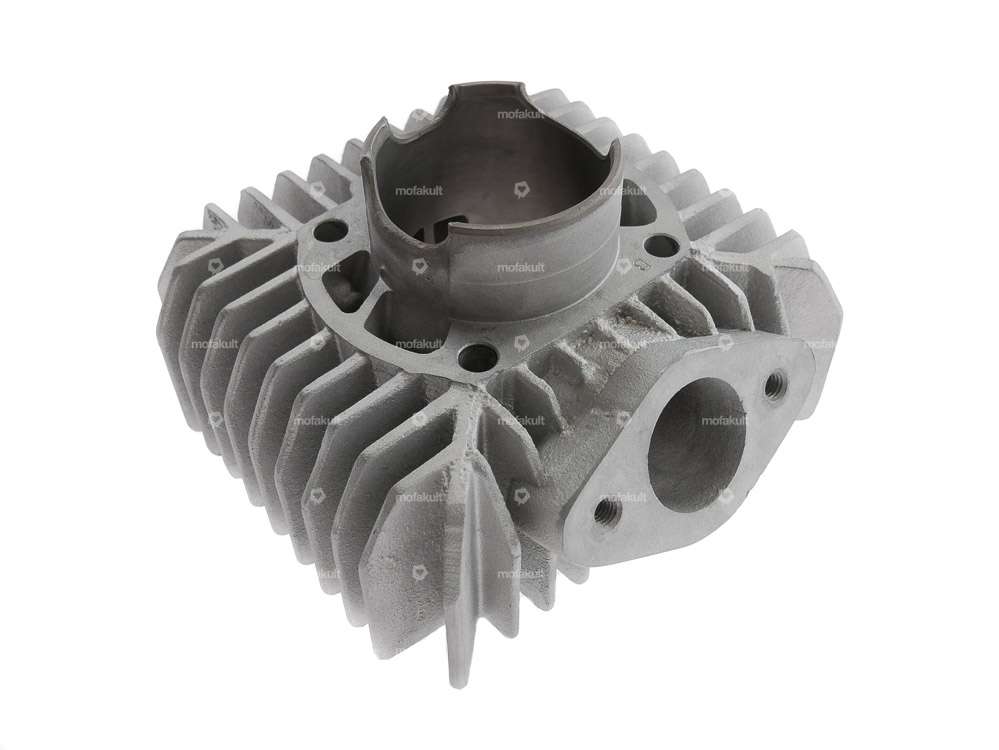

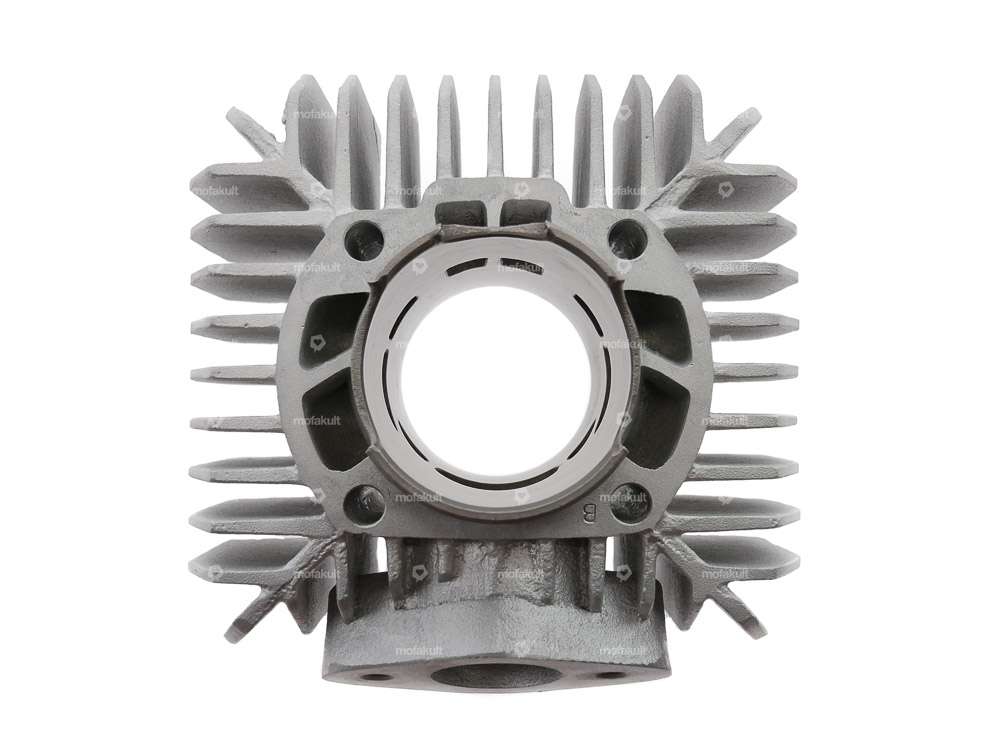

Simonini 47.6 mm cylinder | Piaggio Ciao, SI, Bravo, Boxer

Home
| Motor
| Cylinder
| Cylinder & racing set
EUR 352.40

Incl. 21% VAT.

This aluminum cylinder, which is supplied without cylinder head and without piston, fits the Simonini racing engine for Piaggio mopeds.

The best workmanship and extensive testing make this racing cylinder one of the most powerful available on the market. The 100 cc kit in conjunction with the Simonini racing engine delivers up to 16 hp at 13000 rpm.

Quality product from the Italian manufacturer Simonini.

Details

Nominal diameter47.6 mm
ManufacturerSimonini
MaterialAluminum
Area of applicationTuning
Surfacesandblasted
Displacement100 ccm
Crankshaft stroke46 mm
Hole pattern [mm]50 x 50
Ø piston pin (B)12 mm
Outlet typeslanted
Number of fixing points4 pcs
CamouflagedNo

Suitable for the following models

Piaggio

Ciao - P, SC, PX, C24

Si

Bravo / Super Bravo

Boxer

Grillo
