Nostalgic repair manual with complete exploded views and descriptions for the repair of your Sachs 503 AB CH moped / moped engine.

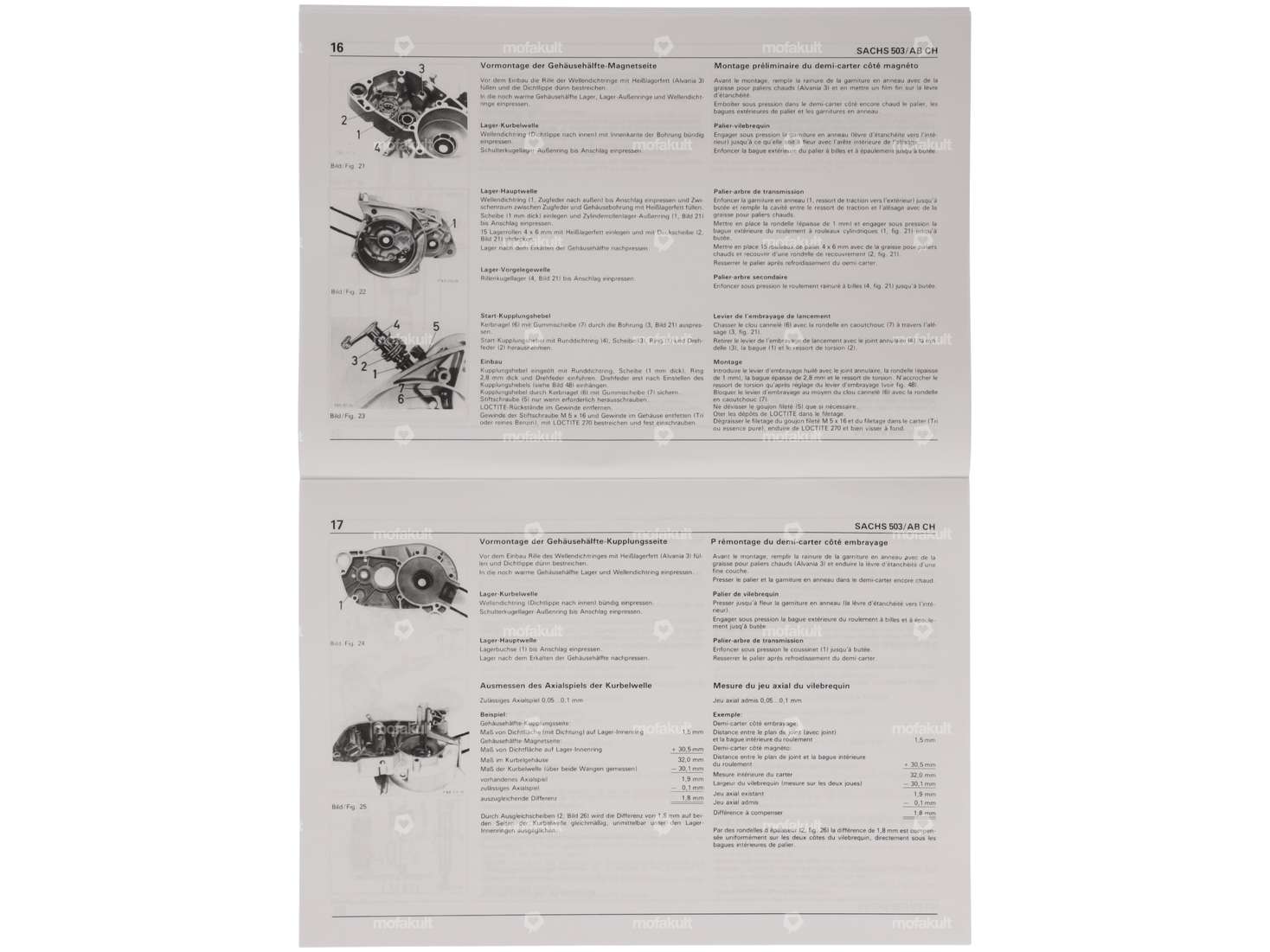

All aspects of the engine are described in detail and are illustrated by comprehensive revision instructions, numerous pictures and important facts.

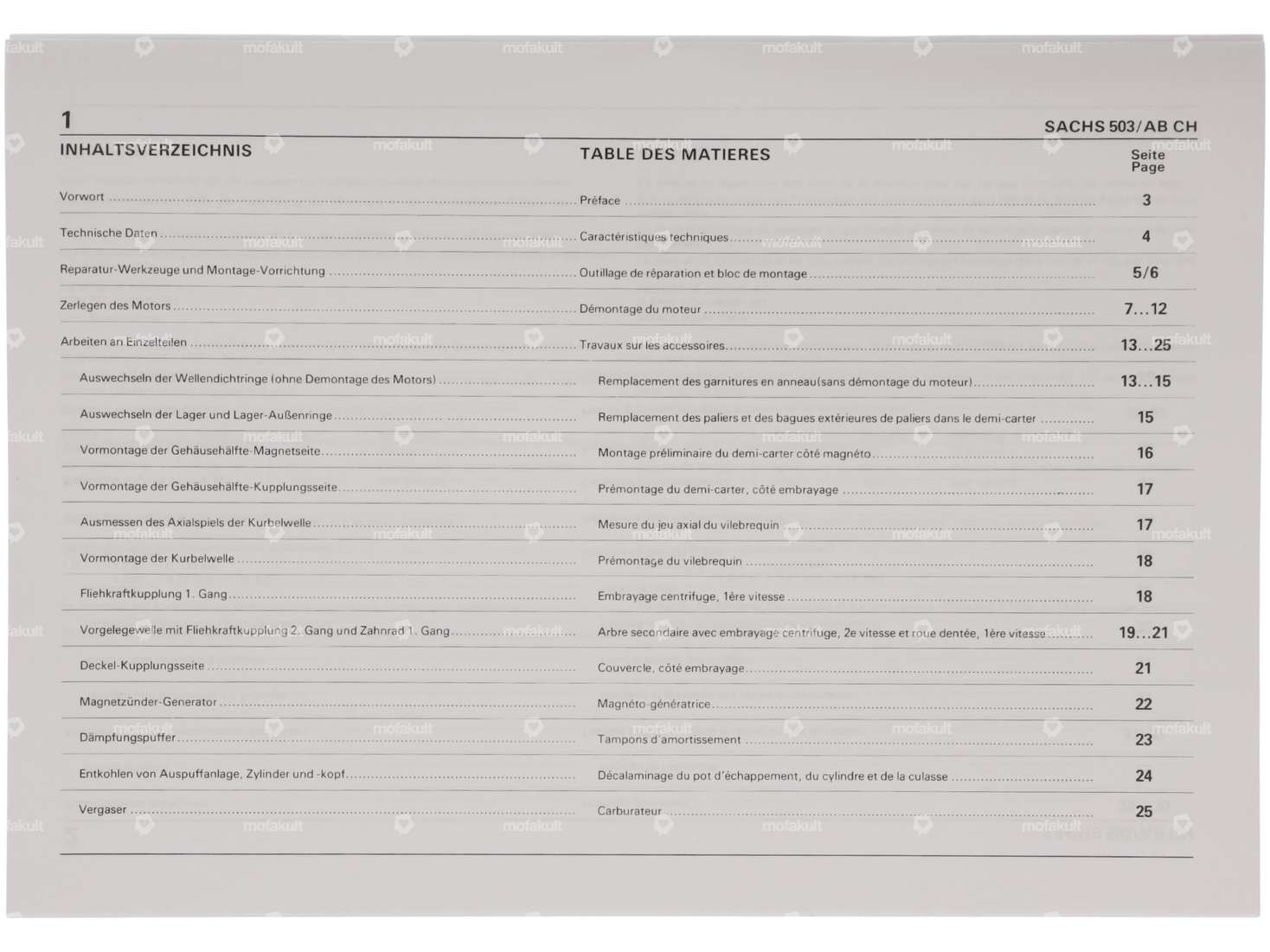

In addition, the following areas are explained in detail: technical data, special tools, engine, inspection work, carburetor and the ignition system.
Details
| Material | Paper |
| DIN format | A4 |
| Number of pages | 40 pcs |
| Language | German, French |
Suitable for the following models
| Sachs | 503 - AB |
Accessories & related products
Moped fans like you also bought:
GPO blade gauge set 0.05 - 1.00 mm 13 pcs.
Width: 13 mm · Measuring range [mm]: 0.05 - 1 mm · Thickness: 0.05 mm · Thickness: 0.15 mm · Thickness: 0.2 mm · Thickness: 0.25 mm · Thickness: 0.3 mm · Thickness: 0.4 mm · Thickness: 0.5 mm · Thickness: 0.6 mm · Thickness: 0.7 mm · Thickness: 0.8 mm · Thickness: 0.9 mm · Thickness: 1 mm · Manufacturer: GPO · Area of application: Measuring tool · Material: Metal · Surface: blank / oiled · Total length: 105 mm · Number of components: 13 pcs
EUR 13.90
NSK BO15 shoulder ball bearing 15/40/10 (A4502)
Width: 10 mm · Bearing cage: Brass cage ball-guided · Inner ring width: 10 mm · Manufacturer: NSK · Material: Brass · Area of application: Standard · Material: Steel · Surface: blank · Stock number: BO15 · Bearing type: Shoulder bearing · Ø inside: 15 mm · Ø outside: 40 mm · Ball bearing closed: No · Pony OEM number: A4502 · Sachs OEM no.: 0932 007 001
EUR 29.00
NSK 6201 ball bearing 12/32/10
Width: 10 mm · Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 10 mm · Manufacturer: NSK · Bearing clearance: CM (special/noise-reduced) · Groove ring: No · Area of application: Standard · Material: Steel · Surface: blank · Stock number: 6201 · Bearing type: Shoulder bearing · Ø inside: 12 mm · Ø outside: 32 mm · Ball bearing closed: No
EUR 9.90
Shaft seal NBR 14.96x31.5x3.5 Pinion shaft | Sachs 502, 50/2, 503 (A1134)
Place of use: Pinion shaft · Temperature resistance (min.): -30 - 100 °C · Ø inside: 14.96 mm · Ø outside: 31.5 mm · Width: 3.5 mm · Manufacturer: Sachs · Material: NBR · Surface: coated · Area of application: Standard · Pony OEM number: A1134 · Sachs OEM no.: 0230 011 100 · Sachs OEM no.: 0230 011 200
EUR 8.75
Oil seal NBR 15/30/5.5 A crankshaft | Sachs (A4215 & A5602)
Place of use: Crankshaft · Material: NBR · Manufacturer: Sachs · Surface: rubberized · Temperature resistance (min.): -30 - 100 °C · Simmering type: A - With rubberized outer part / one sealing lip. · Ø outside: 30 mm · Width: 5.5 mm · Ø inside: 15 mm · Pony OEM number: A5602 · Sachs OEM no.: 0230 111 100
EUR 9.20
Oil seal NBR 15/30/7 B DUO | Sachs 50/2 / 503 (A1830)
Width: 7 mm · Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Material: NBR · Ø inside: 15 mm · Ø outside: 30 mm · Temperature resistance (min.): -30 - 100 °C · Pony OEM number: A1830 · Sachs OEM no.: 0250 090 000
EUR 6.30
swiing® revival gasket set | Sachs 503 AB, AC wide wall
Manufacturer: swiing® revival parts · Material: Aluminum · Material: Copper · Material: Rubber · Material: Sealing carton · Material: Sealing paper · Number of components: 21 pcs · Ø outlet inside: 24 mm · Hole spacing outlet: 38.5 mm · Hole pattern [mm]: 56 x 56 · Area of application: Standard
EUR 52.30
Collection only possible with online purchase and appointment.
