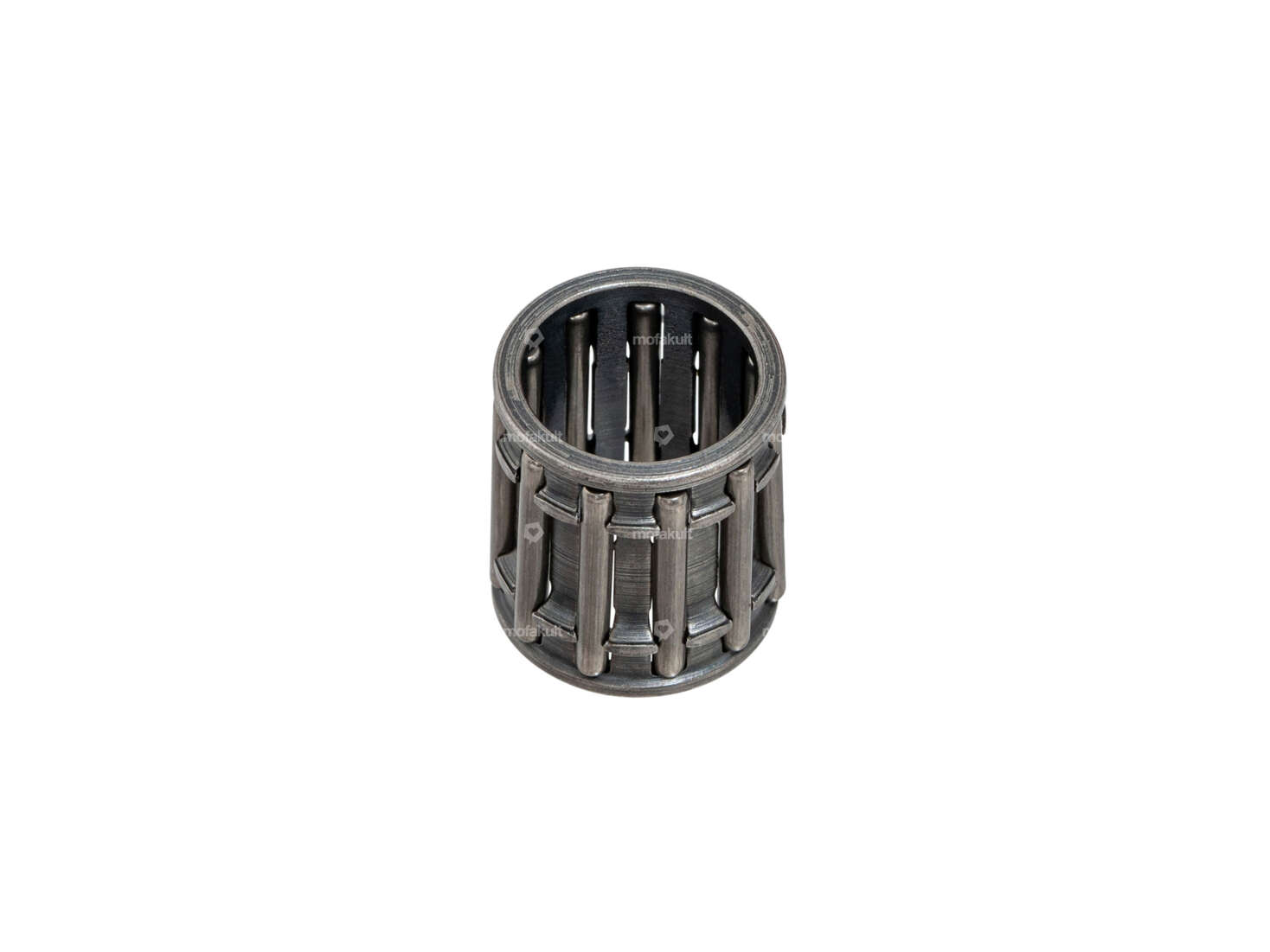

Polini needle bearing 10/13/14.5 piston pin

Meteor piston pin lock Ø 10 mm (double)

Manufacturer: Meteor · Material: Spring steel · Surface: blank · Ø outside: 10 mm · Number of sensors / lugs: 2 pcs

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents [ml]: 1000 ml · Color: green · Area of application: Standard

Piston pin Ø 10 x 31 mm

Material: Steel · Surface: Hardened · Total length: 31 mm · Ø piston pin (B): 10 mm

Needle bearing 10/13/14.2 Piston pin

Bearing type: Needle roller and cage assembly · Bearing cage: Sheet steel cage · Ø outside: 13 mm · Ø inside: 10 mm · Width: 14.2 mm · Dimension needle bearing: 10/13 x 14.2

Jasil crankshaft "Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Jasil · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Ø coupling pin / vario pin: 12 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 91.5 mm · Total length crankpin ignition side: 105 mm · Ø crank webs: 69.8 mm · Ø piston pin (B): 10 mm · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread type: M8x1.25 (standard thread) · Thread length: 13.5 mm · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Wide crank webs: 32.9 mm · Length 1st paragraph: 21.5 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 64.9 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Weight: 716 g · Number of gears: 1 pcs · Area of application: Racing

Malossi needle bearing 10/13/14.5 aluminum cage piston pin

Bearing type: Needle roller and cage assembly · Manufacturer: Malossi · Bearing cage: Sheet steel cage · Ø outside: 1 mm · Ø inside: 13 mm · Width: 14.5 mm · Dimension needle bearing: 10/13 x 14.5

Mazzucchelli crankshaft "Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Number of gears: 1 pcs · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Area of application: Racing · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Weight: 698 g · Thread type: M8x1.25 (standard thread) · Ø piston pin (B): 10 mm · Ø Bearing seat (ignition side): 15 mm · Thread length: 16 mm · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 139 ° · Control time before O.T: 81 ° · Control time according to O.T: 58 °

Malossi piston pin lock Ø 10 mm

Manufacturer: Malossi · Material: Spring steel · Surface: blank · Ø outside: 10 mm

Spotlight round Ø 13 cm chrome / black

Material: Sheet metal (steel) · Bulb holder: BA15d · Color: Chrome · Housing material: Metal · Color: black · Color: transparent · Ø outside: 130 mm · Surface: chrome-plated · Surface: varnished · Lens material: Plastic · Height: 147 mm · Area of application: Standard · Width: 134 mm · Speedometer recording: None · Test mark: none · Switch included: No · Depth: 80 mm · Battery operated: No · Mounting type: Screws · Number of fixing points: 2 pcs · Thread size: M6

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Thread type: MF12x1 (fine pitch thread) · Mounting type: Union nut · Reserve level: 70 mm

GPO bulb 6V - 21/5W (BA15d) 2-filament

Manufacturer: GPO · Bulb holder: BA15d · Color: white · Tension: 6 V · Performance: 5 W · Performance: 21 W · Total length: 48 mm · Ø base: 15 mm · Test mark: none · Ø Lamp head: 25 mm · LED: No

M8 sealing ring Fiber

Material: Fiber · Ø outside: 13.7 mm · Surface: raw · Place of use: Carburetor · Place of use: Motor housing · Thickness: 1 mm · Ø inside: 8.3 mm · Area of application: Standard · Puch OEM number: 26482

GPO bulb 6V - 21W (BA15s) 1-filament

Manufacturer: GPO · Test mark: none · Bulb holder: BA15s · Tension: 6 V · Performance: 21 W · Color: white · Ø base: 15 mm · Total length: 47 mm · Ø Lamp head: 25 mm · LED: No

swiing nozzle set M5 (50 - 70) Dell'Orto SHA, PHBG

Manufacturer: swiing · Material: Brass · Component group Carburetor: Spraying · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Drive: Slot · Total length: 8 mm · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70

SKF Bearing Set & Oil Seal Engine | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: SKF · Number of components: 3 pcs · Material: Plastic · Material: Steel · Area of application: Standard

CIF intermediate disk flywheel / clutch bell | Piaggio Ciao, SI, Bravo Boxer

Ø Bundle: 16.3 mm · Manufacturer: CIF · Material: Steel · Ø outside: 23 mm · Surface: galvanized (blue) · Nominal diameter inside: 12 mm · Total length: 5 mm · Ø inside: 12 mm

Wedge 12.1x4.9x3 mm

Material: Steel · Total length: 12.5 mm · Height: 4.9 mm · Width: 3 mm

Polini cylinder head for 38.4 - 43 mm cylinder kit (version 2.0) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Aluminum · Total length: 118 mm · Height: 58 mm · Ø cylinder: 38.4 - 43 mm · Area of application: Tuning · Width: 85 mm · Candle thread: long · Decompressor: Yes · Camouflaged: No
