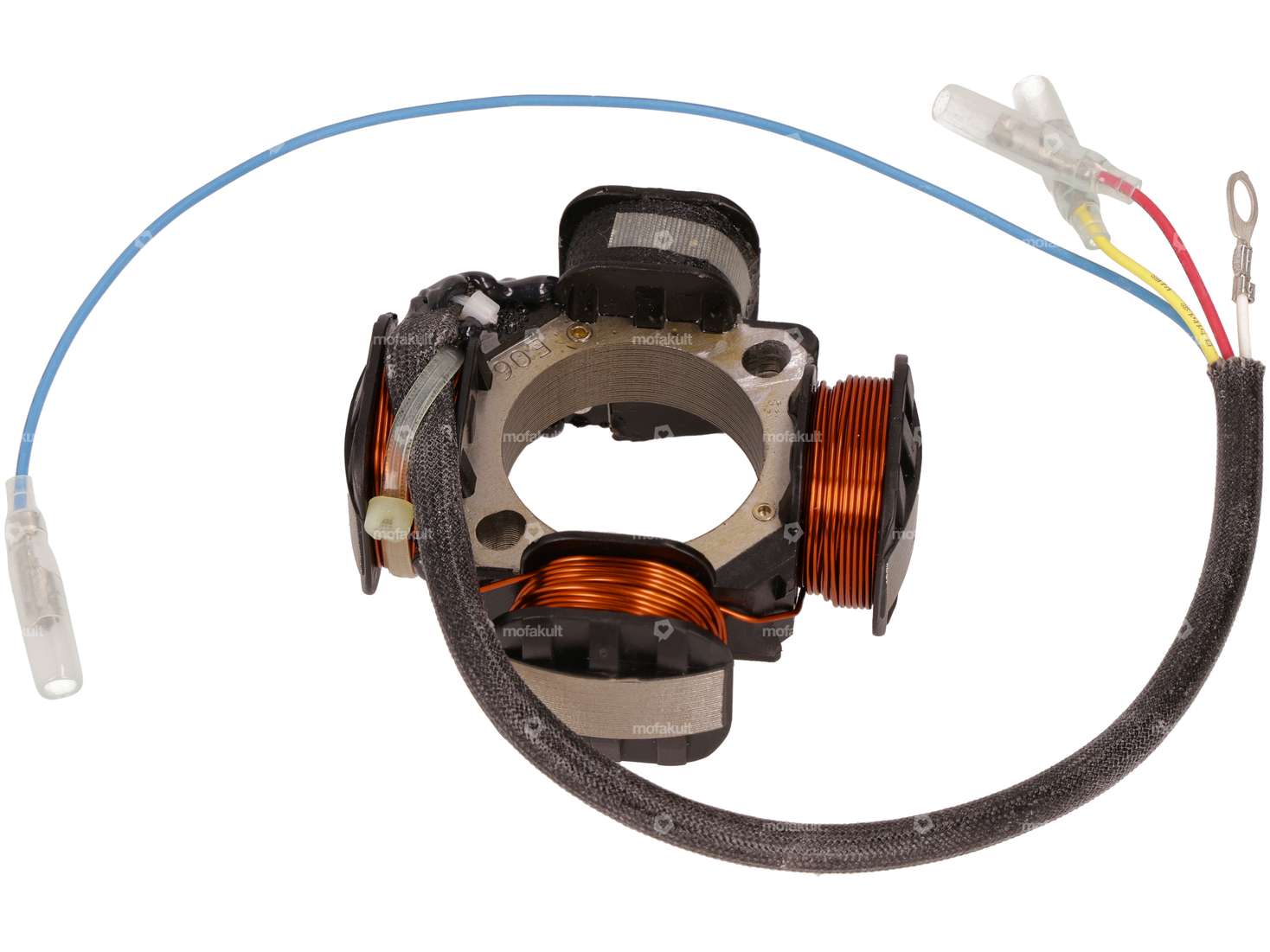

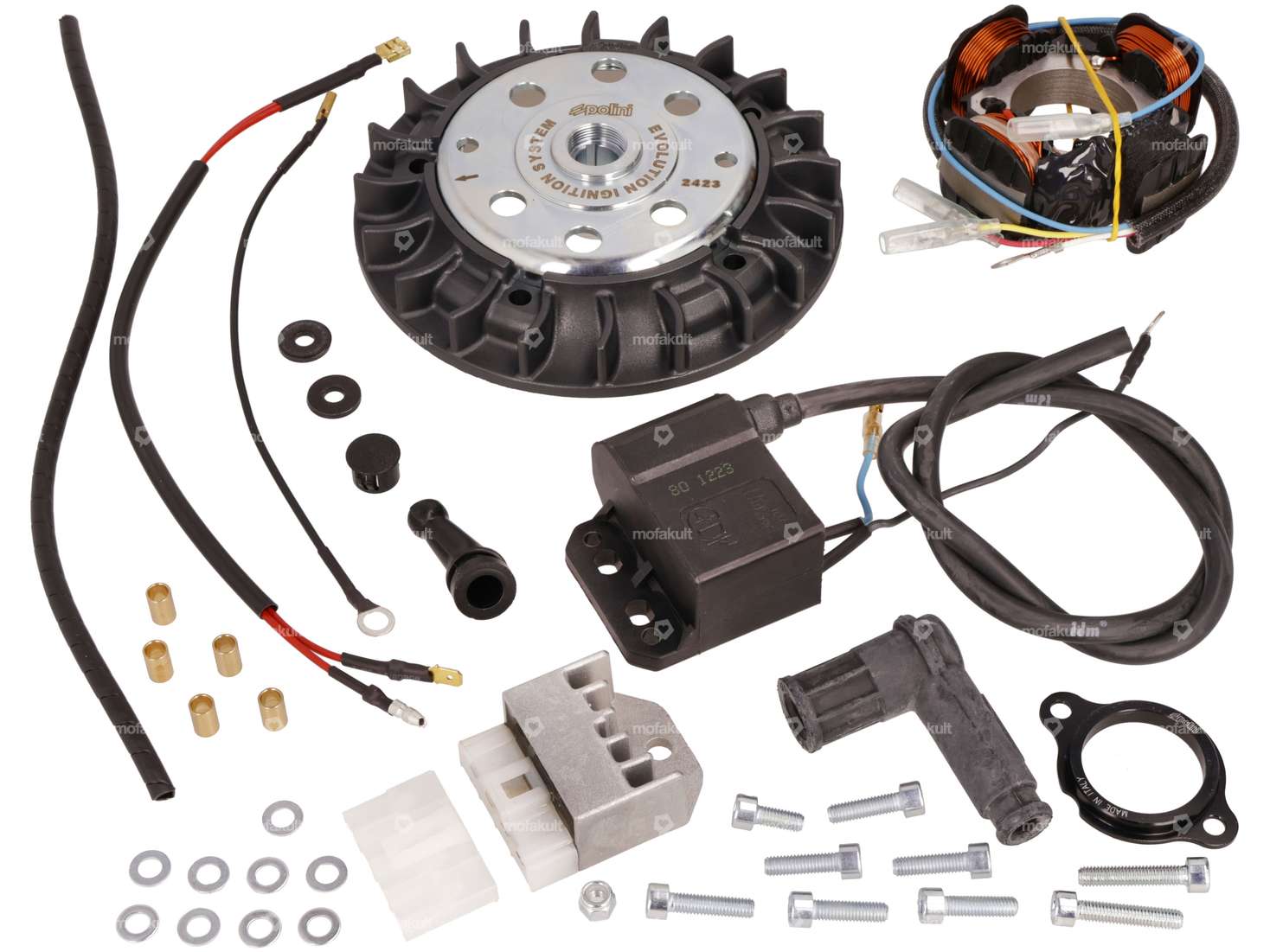

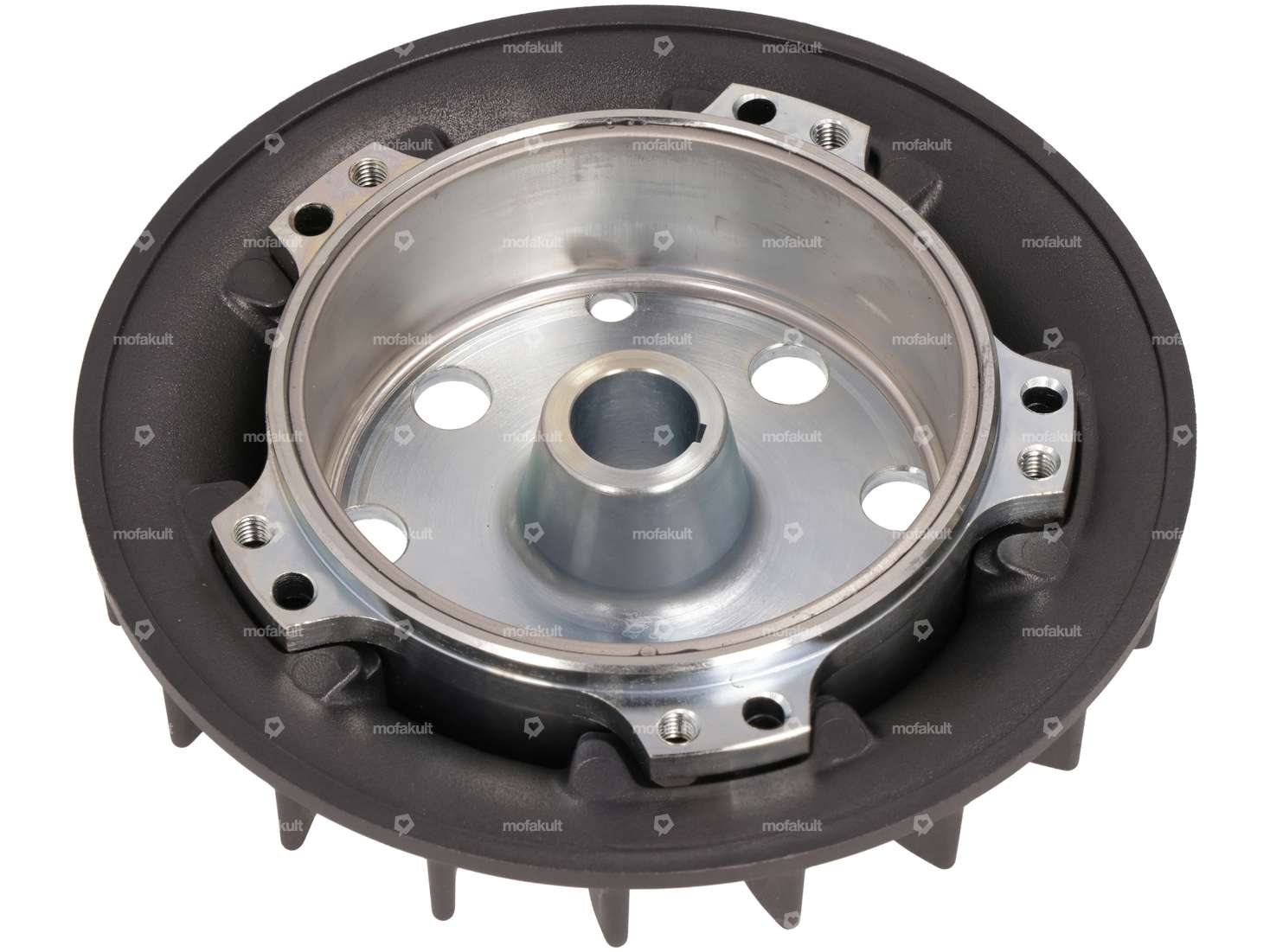

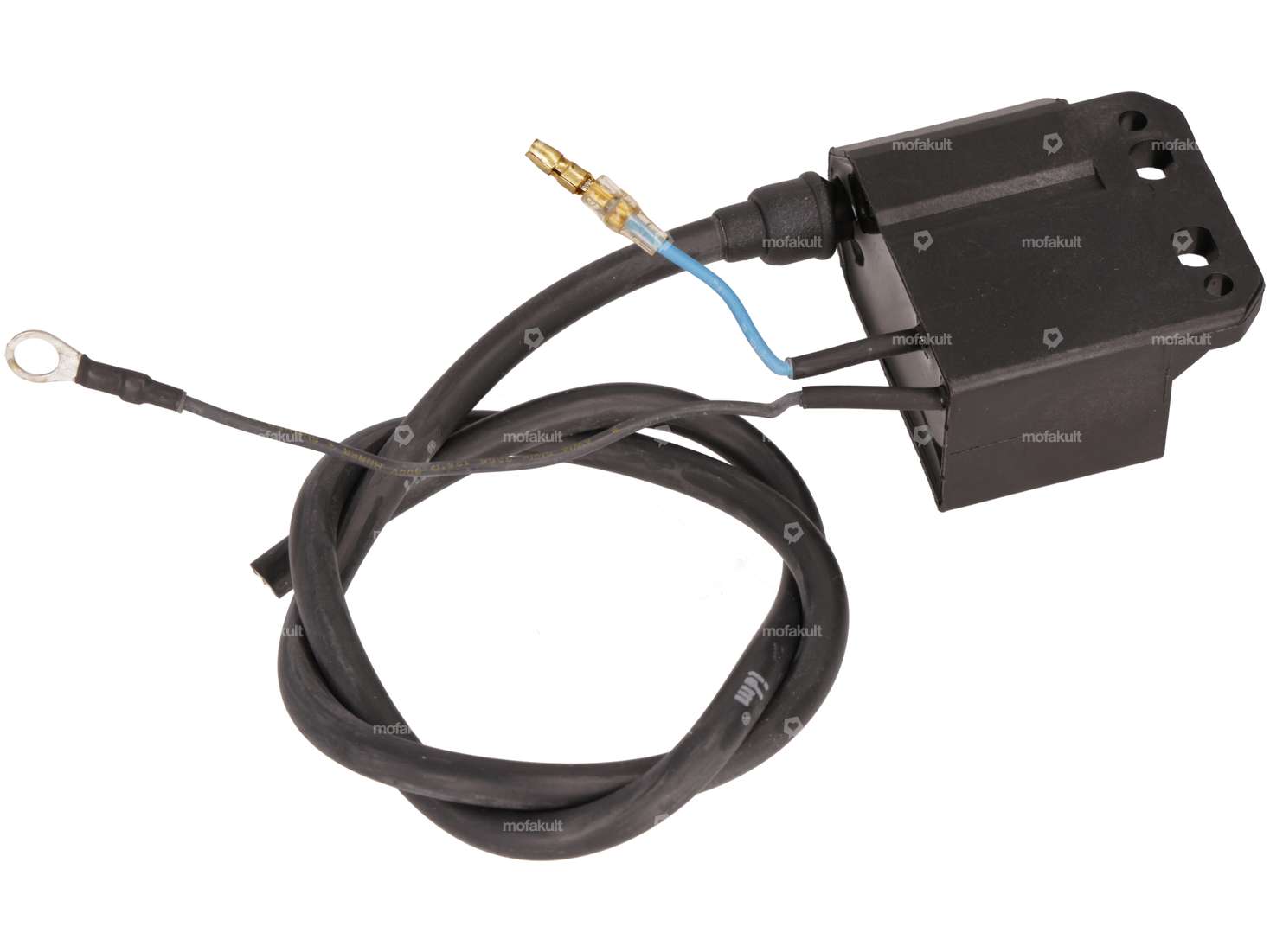

Electronic Polini EVO ignition with 12V voltage and 90W light output, suitable for your Piaggio Ciao, Si, Bravo and Boxer moped / moped, provided the corresponding engine housing is available.
The Polini ignition was developed together with the other EVOLUTION parts, but also fits on racing bikes from other manufacturers.
Details
| Manufacturer | Polini |
| Light coil voltage | 12 V |
| Performance | 90 W |
| Direction of rotation | right |
| Ø Flywheel outside | 105 mm, 138.5 mm |
| Ø Internal flywheel | 80.5 mm |
| Number of fixing points | 2 pcs |
| Area of application | High End, Tuning, Racing |
| Weight | 554 g |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
