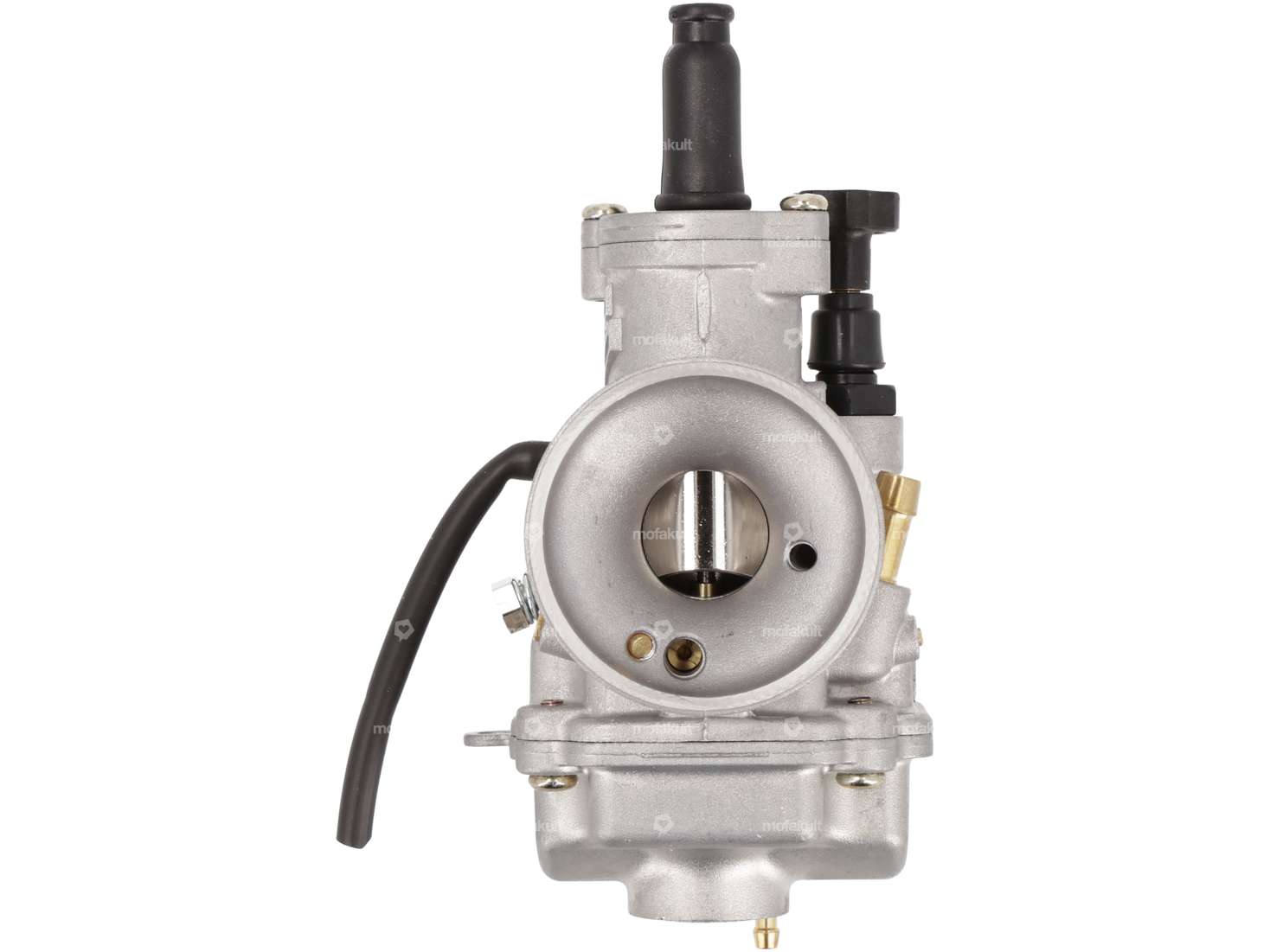

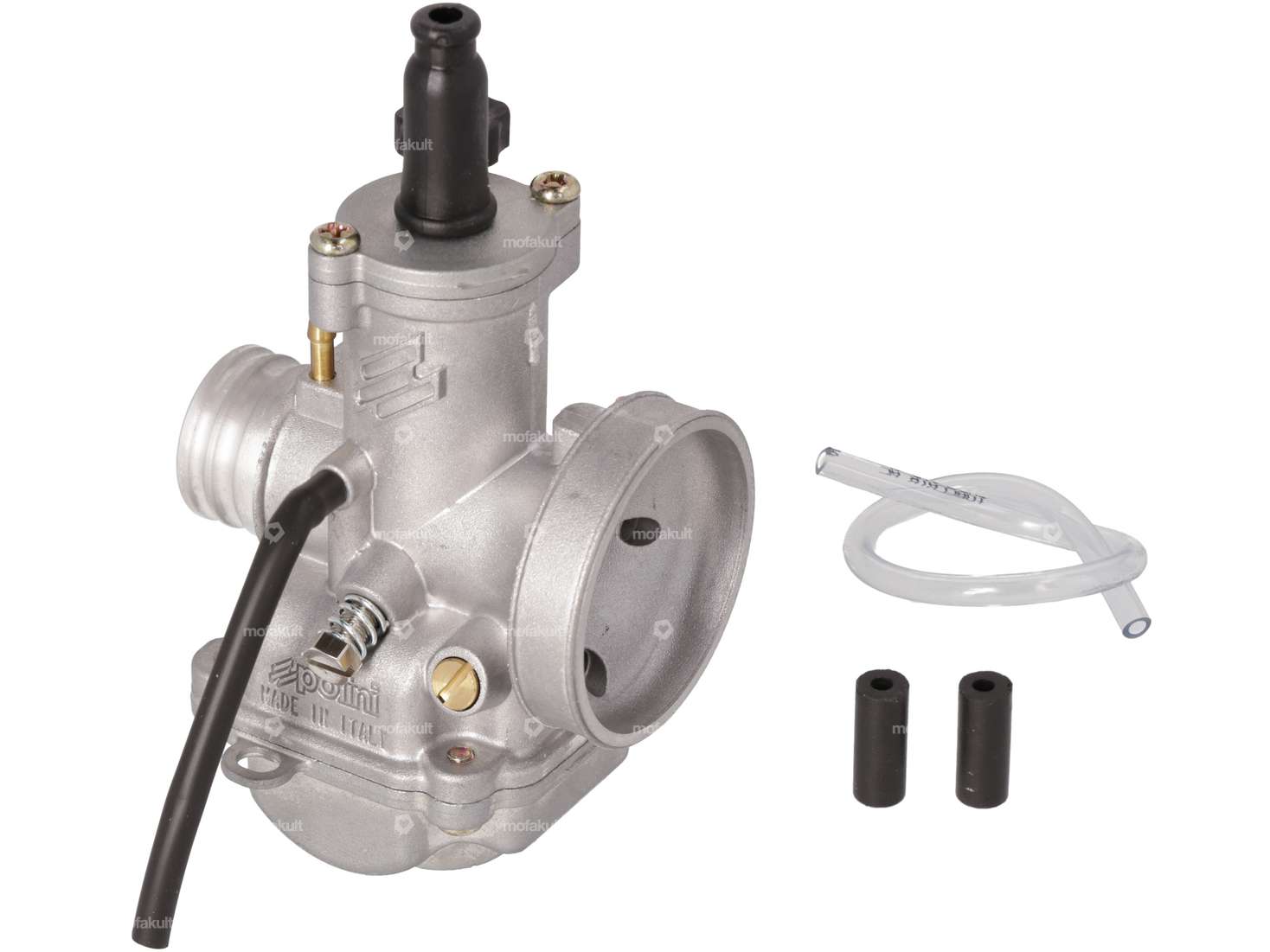

Polini CP 17.5 carburetor for your racing moped, moped and small motorcycle with the highest demands. The racing carburetor developed by Polini has a compact design and is around 40 % lighter than comparable carburetors. The air flow is optimized thanks to the short intake path and the circular passage. The larger needle and an adapted mixing tube support the atomization of the gas mixture. This makes it very easy to tune the carburetor. In addition, consumption is reduced even at high power levels.
Fastening to the intake manifold is by means of a rubber sleeve.
Installed main nozzle: 80
Installed secondary nozzle: 36
Ø Nominal: 17.5 mm
Ø Connection air filter: 46 mm
Ø Connection intake manifold: 25 mm
Alternative racing carburetors, the sleeve for mounting and the matching nozzles can be found under accessories.
Quality product from the Italian manufacturer Polini.
Details
| Width | 66 mm |
| Height | 132 mm |
| Manufacturer | Polini |
| Camouflaged | No |
| Material | Aluminum |
| Area of application | Tuning, Racing, Performance |
| Component group Carburetor | Carburetor complete |
| Nominal diameter | 17.5 mm |
| Carburetor type | CP |
| Nozzle block | 35-12 |
| Choke control | Hand choke |
| Ø fuel hose connection | 6 mm, 7 mm |
| Nozzle thread | M5x0.8 (standard thread) |
| Total length | 71 mm |
| Nozzle size | 80 |
| Ø Inside entrance | 42 mm |
| Mounting type | Rubber sleeve |
| Ø Output inside | 21.5 mm |
| Ø Air filter connection | 47 mm |
| Mixed oil connection | Yes |
| Vacuum connection | Yes |
| Size of secondary nozzle | 36 |
