For: Puch

16957

Operating instructions | Puch X30 NG-2A (2-speed automatic)

Home
| Workshop & standard parts
| Miscellaneous
| Literature & Posters
EUR 32.20

Incl. 21% VAT.

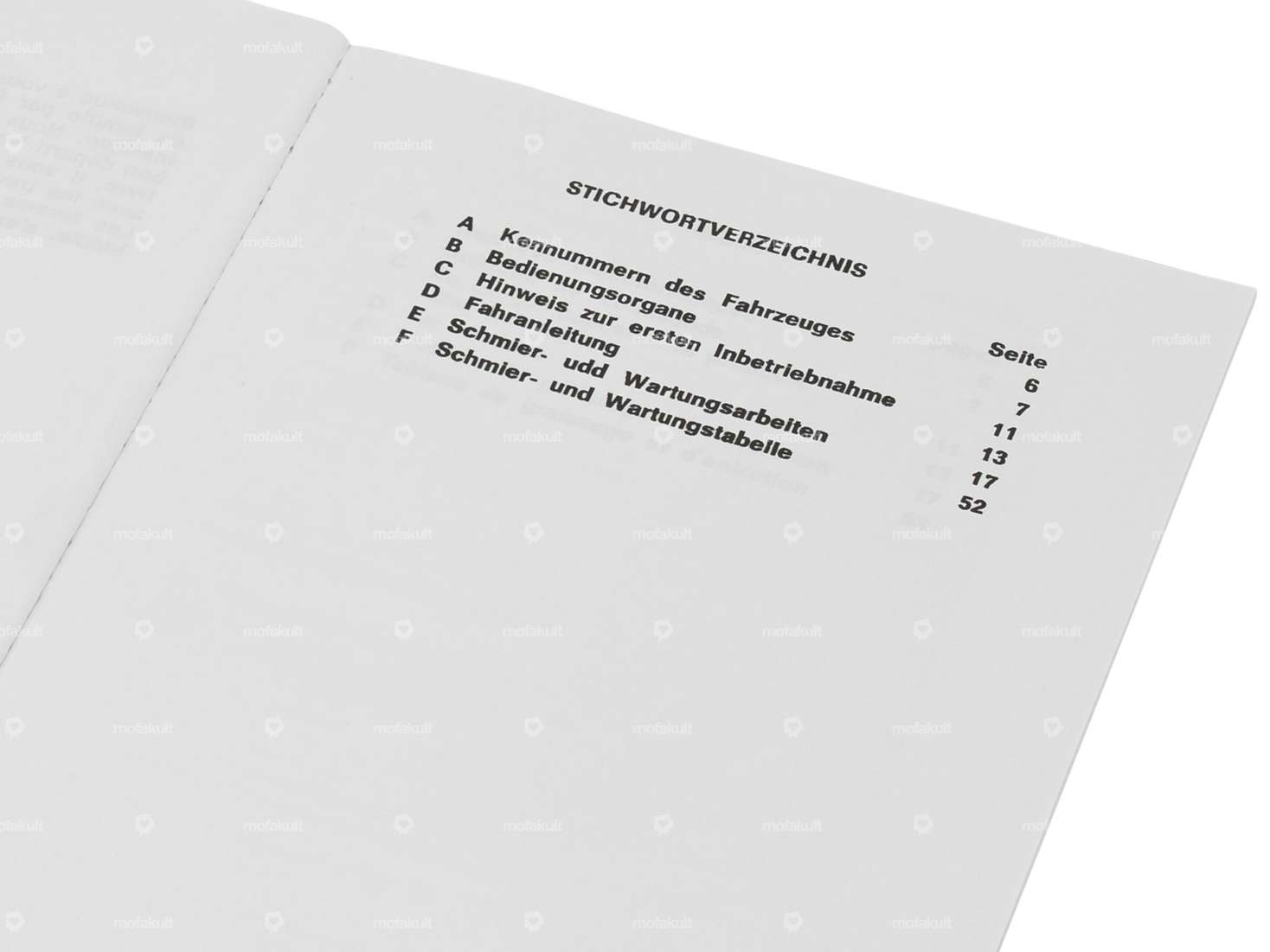

Operator's manual for Puch X30 NG-2A and NG-2AH (2-speed automatic engine).
Very helpful, informative booklet.

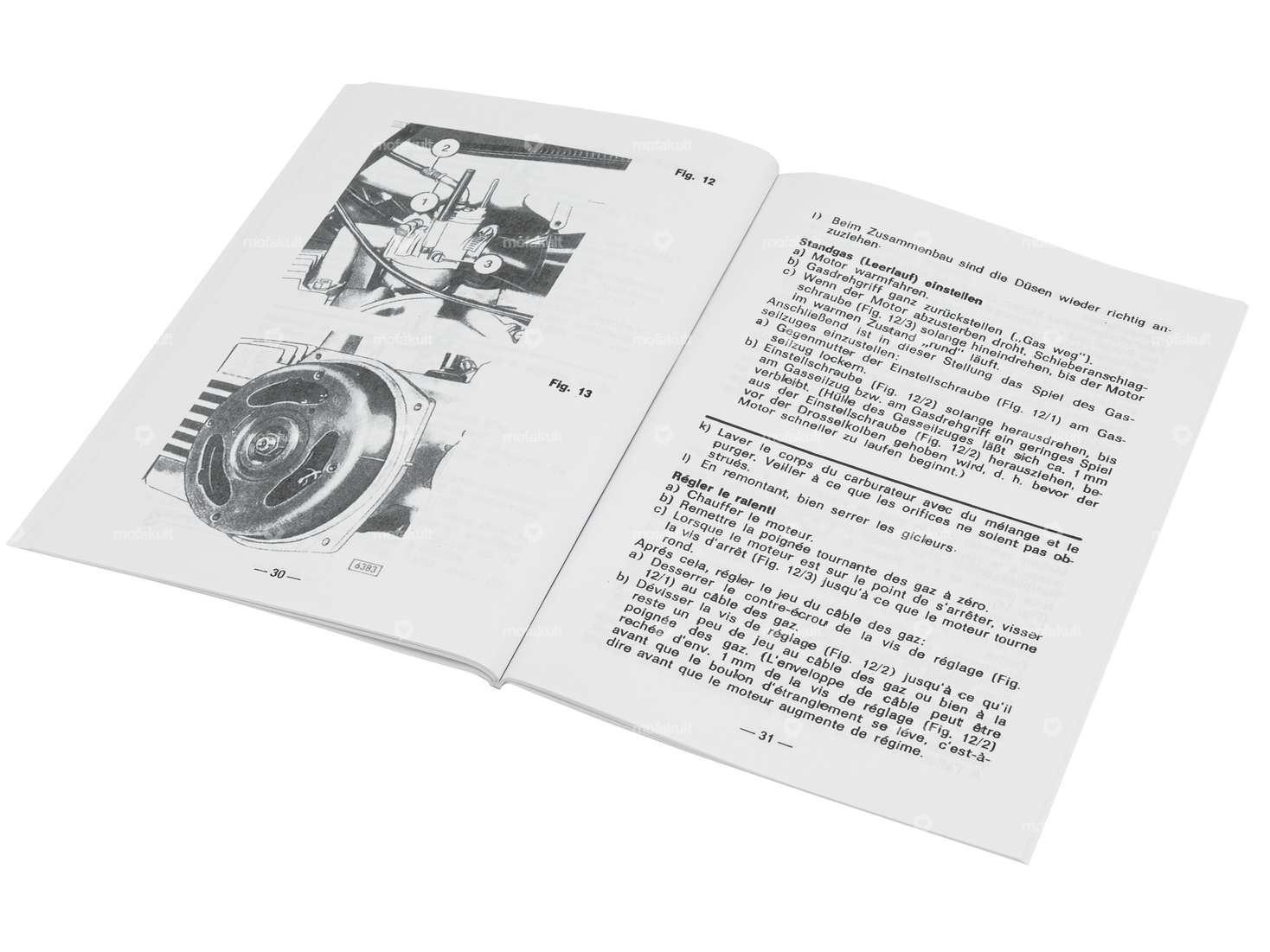

This explains technical data, maintenance work, adjustments etc.. It also has helpful pictures and the explanations are easier to understand.

A6 format with 53 pages.

Details

MaterialPaper
DIN formatA6
Number of pages53 pcs
LanguageGerman, French

Suitable for the following models

Puch

ZA50 (air-cooled)

ZA50 (fan-cooled)
