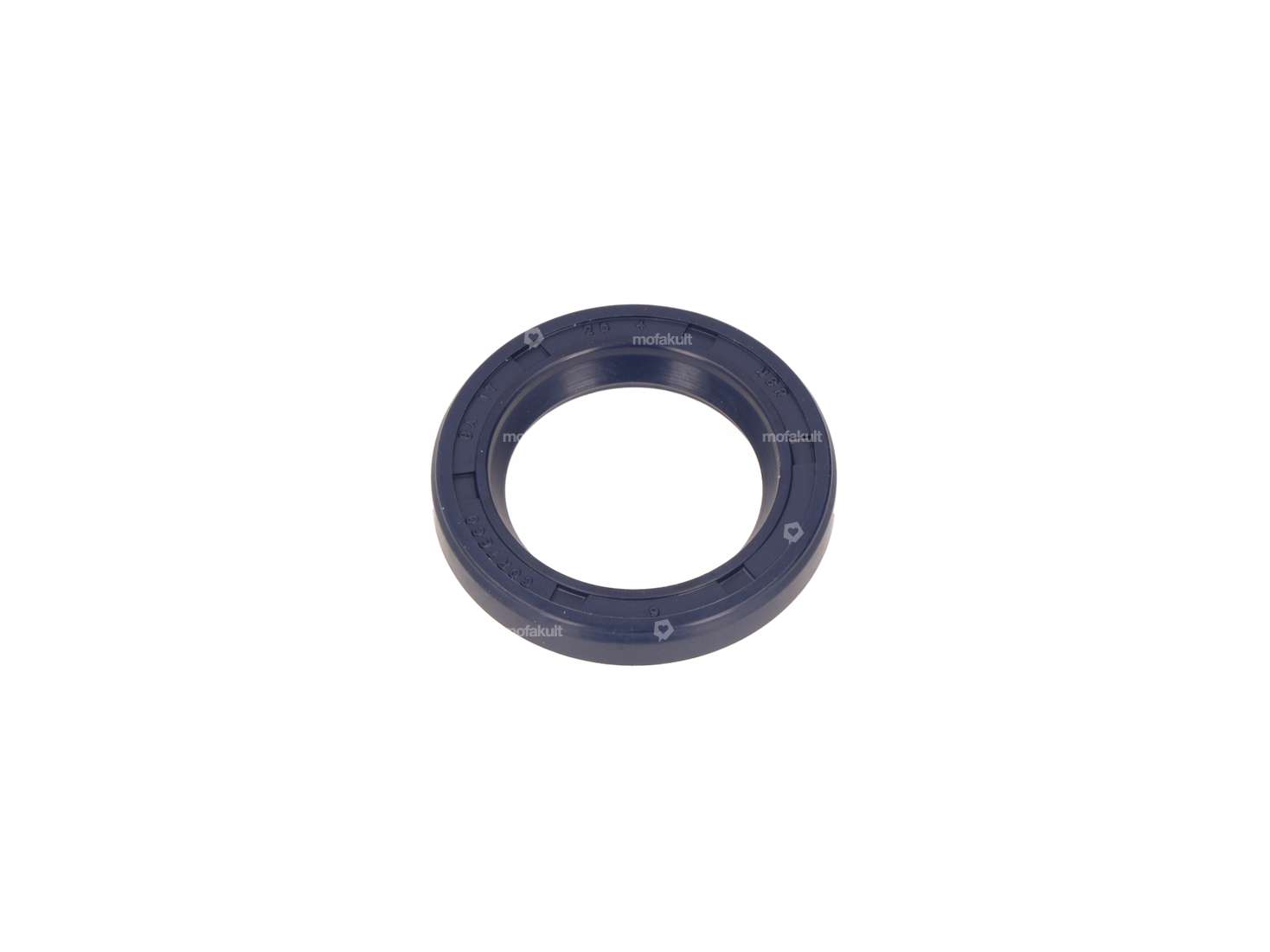

High-quality shaft seal 17x25x4 mm for use on the pully shaft of your Piaggio Ciao, Si, Bravo and Boxer moped / moped.
This radial shaft seal (also known by the popular brand name Simmerring®) is fitted to the pully shaft (input shaft) of the gearbox on mono drives.
The oil seal for the output shaft as well as gaskets can be found in the accessories section.
A quality product made in Italy.
Original Piaggio spare part number: 114469
Details
| Temperature resistance (min.) | -30 - 100 °C |
| Simmering type | A - With rubberized outer part / one sealing lip. |
| Manufacturer | Made in Italy |
| Material | NBR |
| Surface | rubberized |
| Ø inside | 17 mm |
| Place of use | Gearbox cover |
| Ø outside | 25 mm |
| Width | 4 mm |
| Piaggio OEM number | 114469 |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo Gilera CBA Gilera Citta |
