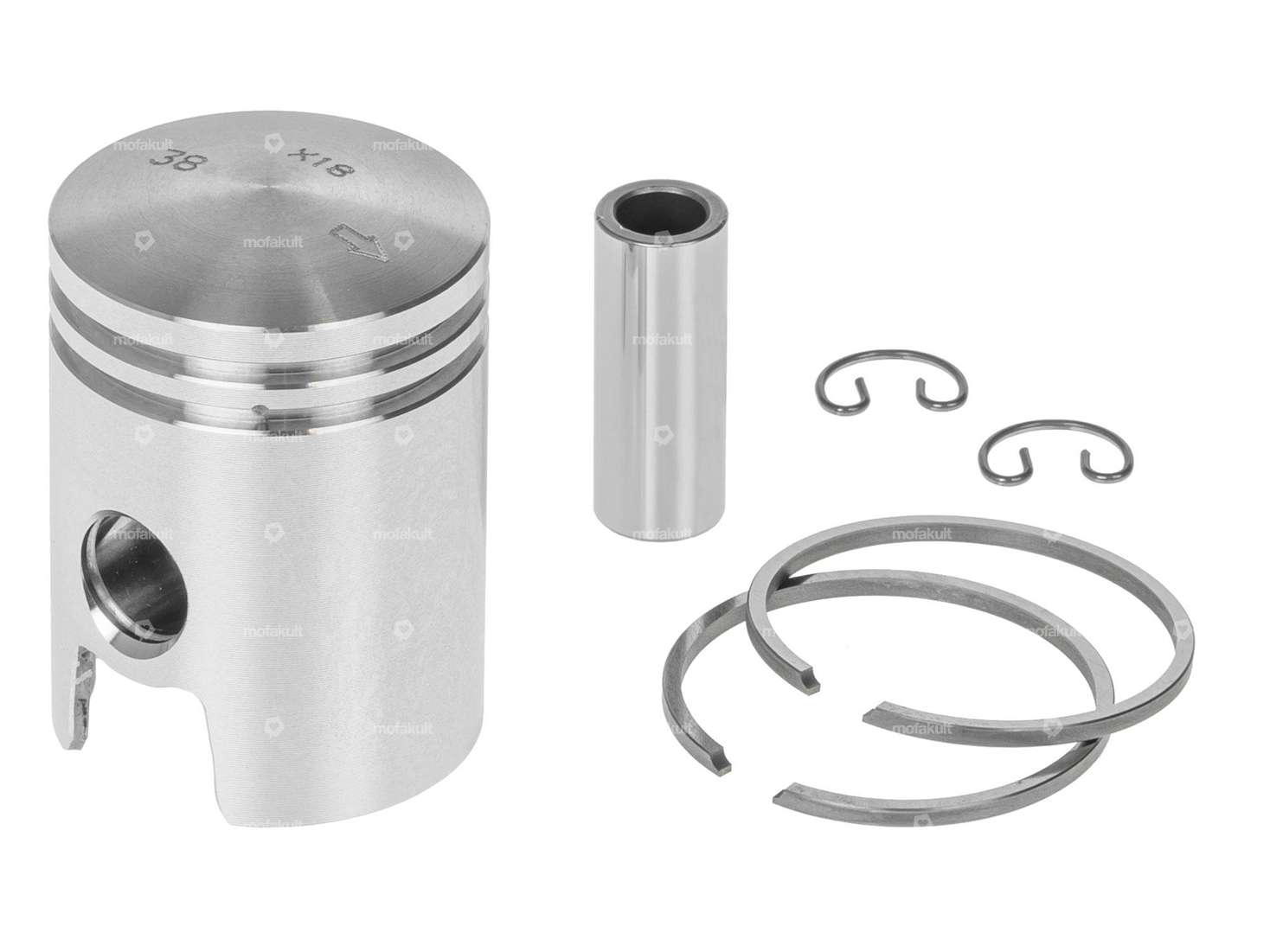

38.9 mm ¨oum dimension piston with 2 pieces of 2 mm rectangular piston rings with flank lock (FS) suitable for Sachs 502, 50/2, 503 2AL, AAL, 2BL, ABL CH.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the piston rings used, their positions and locking types on the legend in the images.
The piston is used for bored and honed cylinders.
The piston kit contains piston pins, piston clips and piston rings.
Corresponding assembly tools, piston rings, piston pin locks etc. can be found under accessories.
Original spare part number: A2775
Quality product from the Italian manufacturer Meteor.
Details
| Nominal diameter | 38 mm |
| Manufacturer | Meteor |
| Ø outside piston (A) | 38.85 mm |
| Compression height (C) | 28 mm |
| Curvature (D) | 3 mm |
| Total piston height (E) | 53 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 2 mm |
| Ø piston pin (B) | 12 mm |
| Piston weight | 86 g |
| Pony OEM number | A2775 |
| Sachs OEM no. | 0286 377 013 |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 503 - AAL, ABL, 2AL / 2BL |
