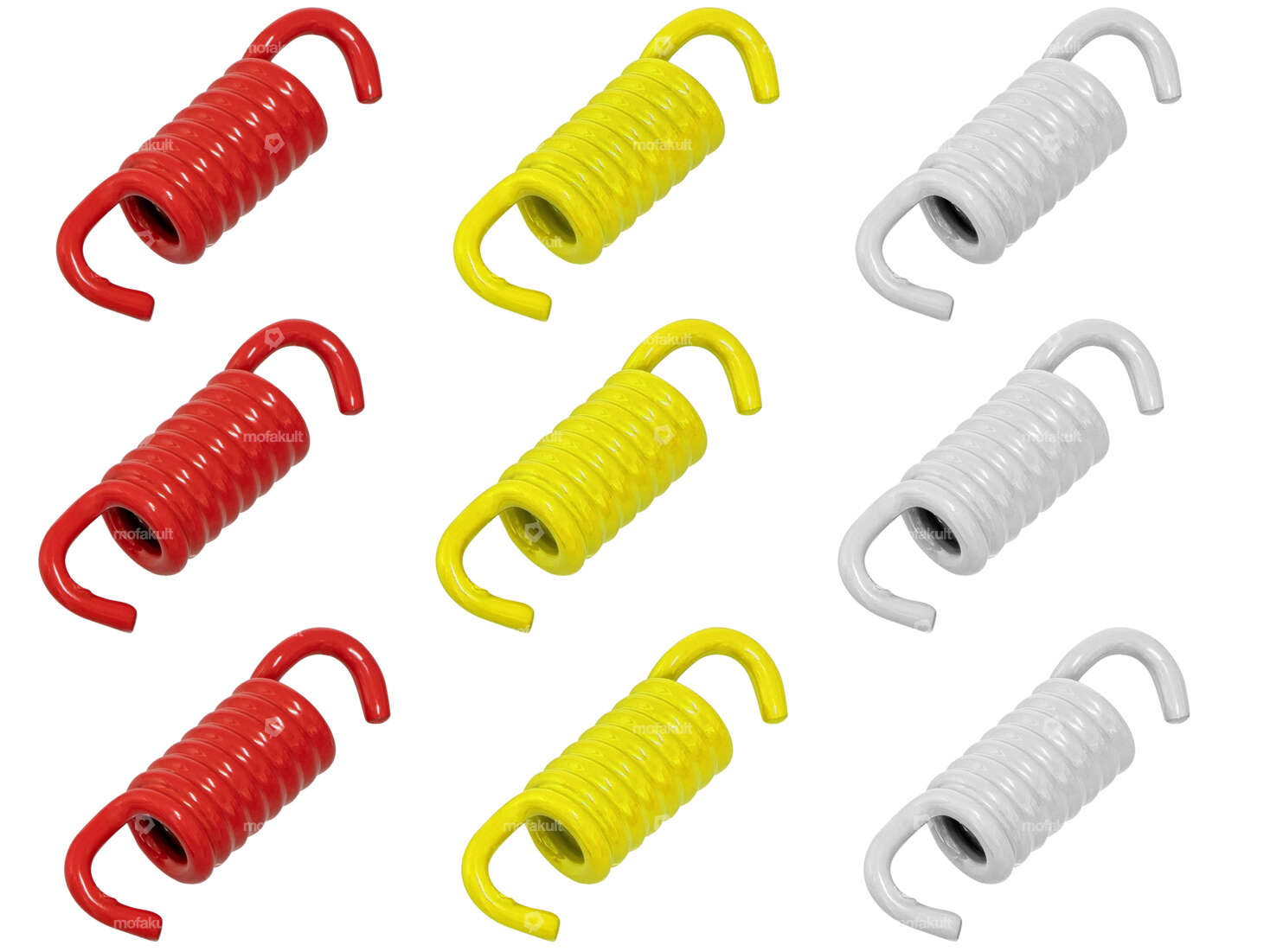

Clutch springs in three thicknesses for the Jammer clutch on your Puch and Tomos moped / moped.
As the original springs tend to break, they can be replaced by Malossi springs.
The springs are supplied in 3 thicknesses:
Weak (white): 2.25 mm, 32.65 mm
Medium (yellow): 2.28 mm, 32.3 mm
Strong (red): 2.42 mm, 32.0 mm
We recommend stretching the springs once (pulling them into length) before installation so that the color loosens and the spring can function properly.
You can find more clutch springs in the accessories section.
Quality product from the Italian manufacturer Malossi.
Details
| Spring design | Tension spring |
| Ø wire | 2.2 mm, 2.3 mm, 2.4 mm |
| Manufacturer | Malossi |
| Material | Spring steel |
| Surface | varnished |
| Color | white, yellow, red |
| Total length | 32.6 mm |
| Area of application | Tuning |
Suitable for the following models
| Puch | E50 |
| Tomos |
