Not so nice

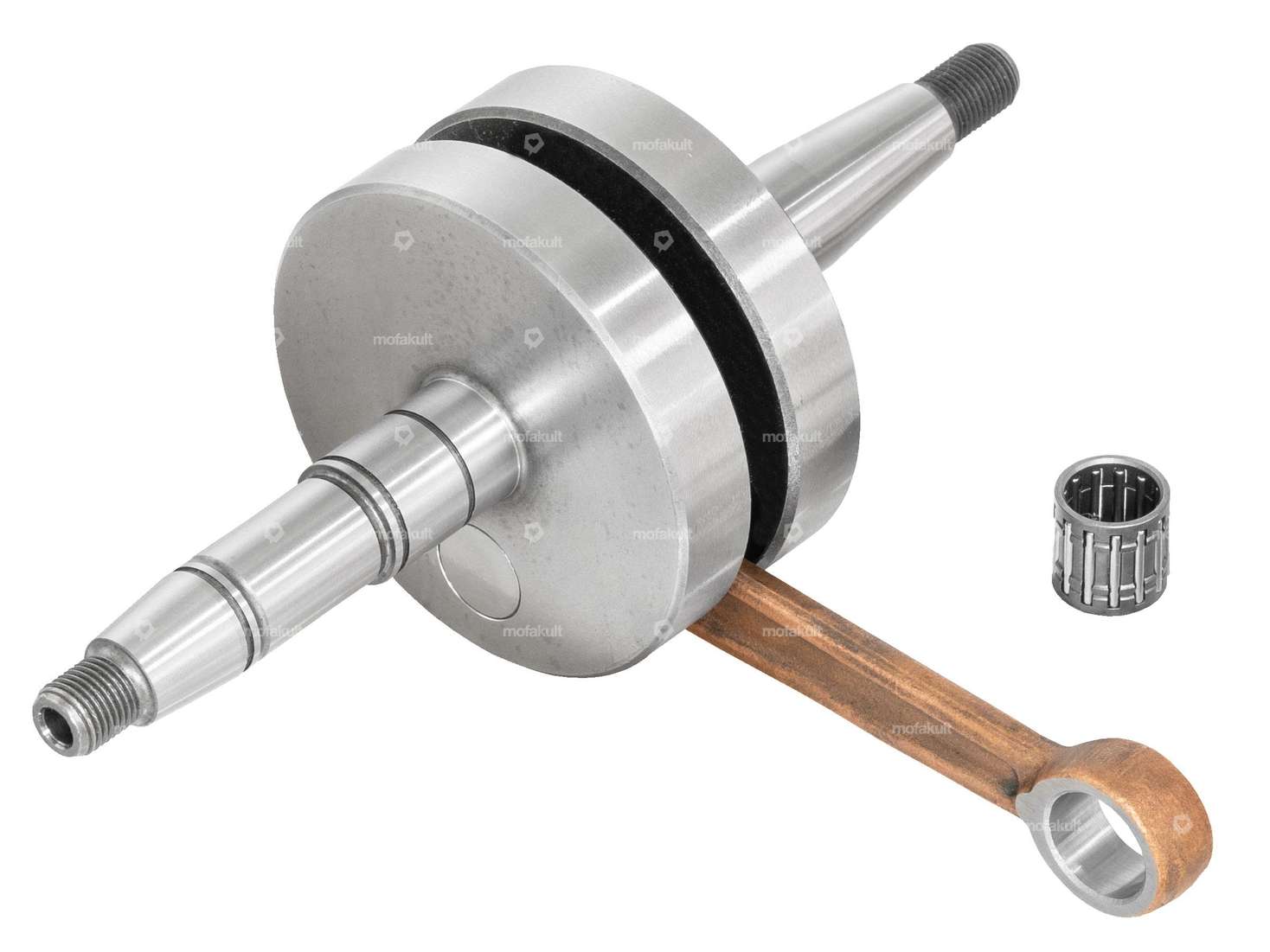

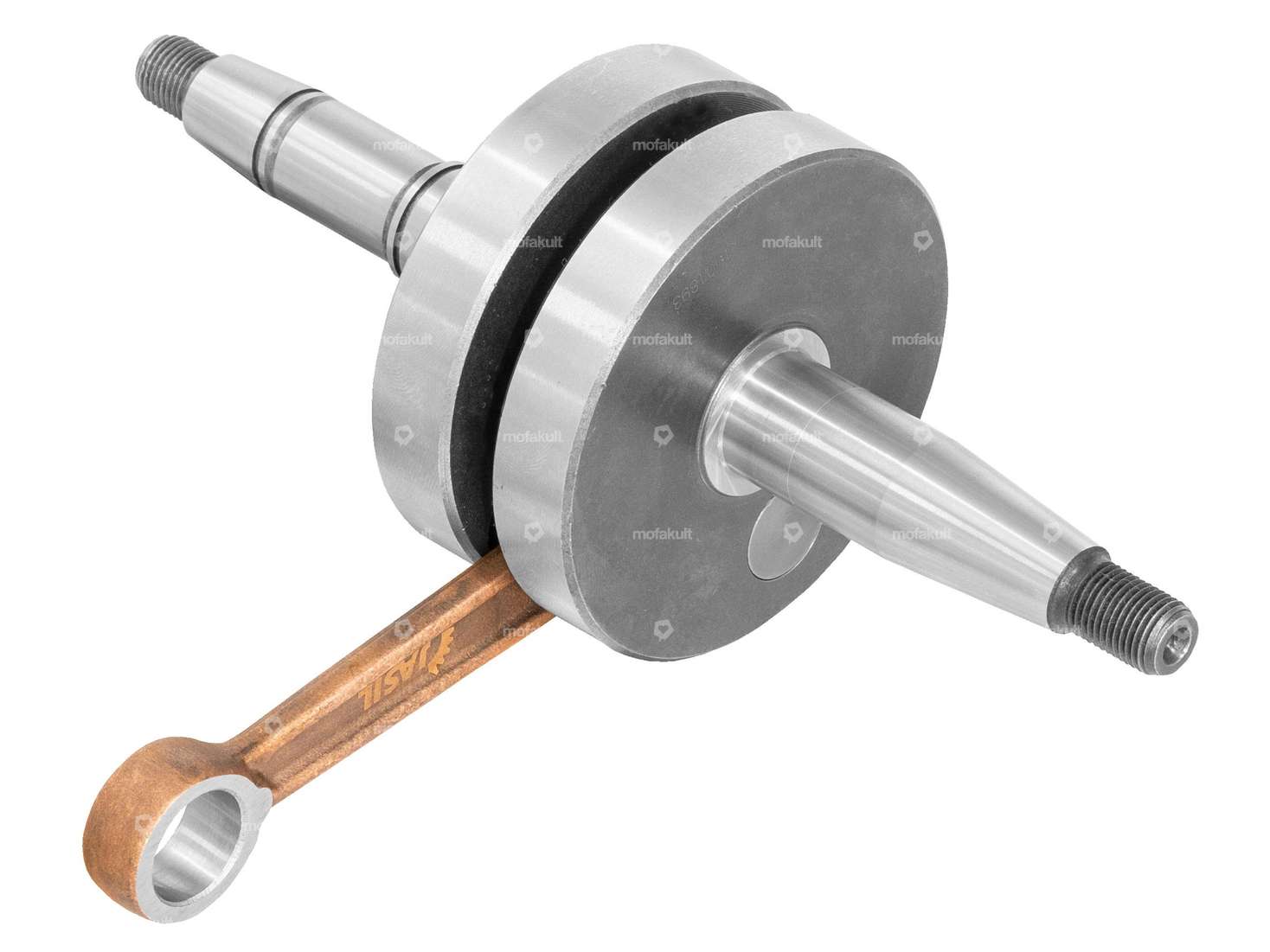

Full cheek shaft suitable for various mopeds / mopeds with Puch E50 engines.
Mäsig-läsig! – We strive to offer you the widest range of moped spare parts. However, this product is of rather poor quality and is not recommended by us. Should you nevertheless choose this item, we can understand your decision, but cannot offer you any guarantee or exchange.
The connecting rod bearing may be too rough, which can lead to the lubricating film breaking off. This in turn can cause the connecting rod bearing to run hot.
High-quality alternatives such as our swiing crankshaft can be found in the accessories section.
Branded product from the Portuguese manufacturer Jasil under the Top Racing brand.
Details
| Manufacturer | Jasil |
| Material | Steel |
| Area of application | Racing |
| Cheek type | Full cheeks |
| Crankshaft stroke | 43 mm |
| Connecting rod length center-center | 90 mm |
| Total length of crankpin on clutch side | 74 mm |
| Thread length | 10 mm, 13.5 mm |
| Number of gears | 1 pcs |
| Total length crankpin ignition side | 67 mm |
| Ø crank webs | 69.9 mm |
| Ø Connecting rod eye | 15 mm |
| Ø piston pin (B) | 12 mm |
| Ø Bearing seat (clutch side) | 17 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Ø Bearing seat (ignition side) | 17 mm |
| Dimension needle bearing | 12 / 15 x 14.7 mm (axe 12) |
| Wide crank webs | 34.3 mm |
| Length 1st paragraph | 23.3 mm |
| Length 2nd paragraph | 25 mm |
| Ø 1st step (on the coupling side) | 17 mm |
| Ø 2nd shoulder (on the clutch side) | 15 mm |
| Weight | 964 g |
| Length of shoulder (ignition side) | 26.3 mm |
Suitable for the following models
| Puch | E50 |
