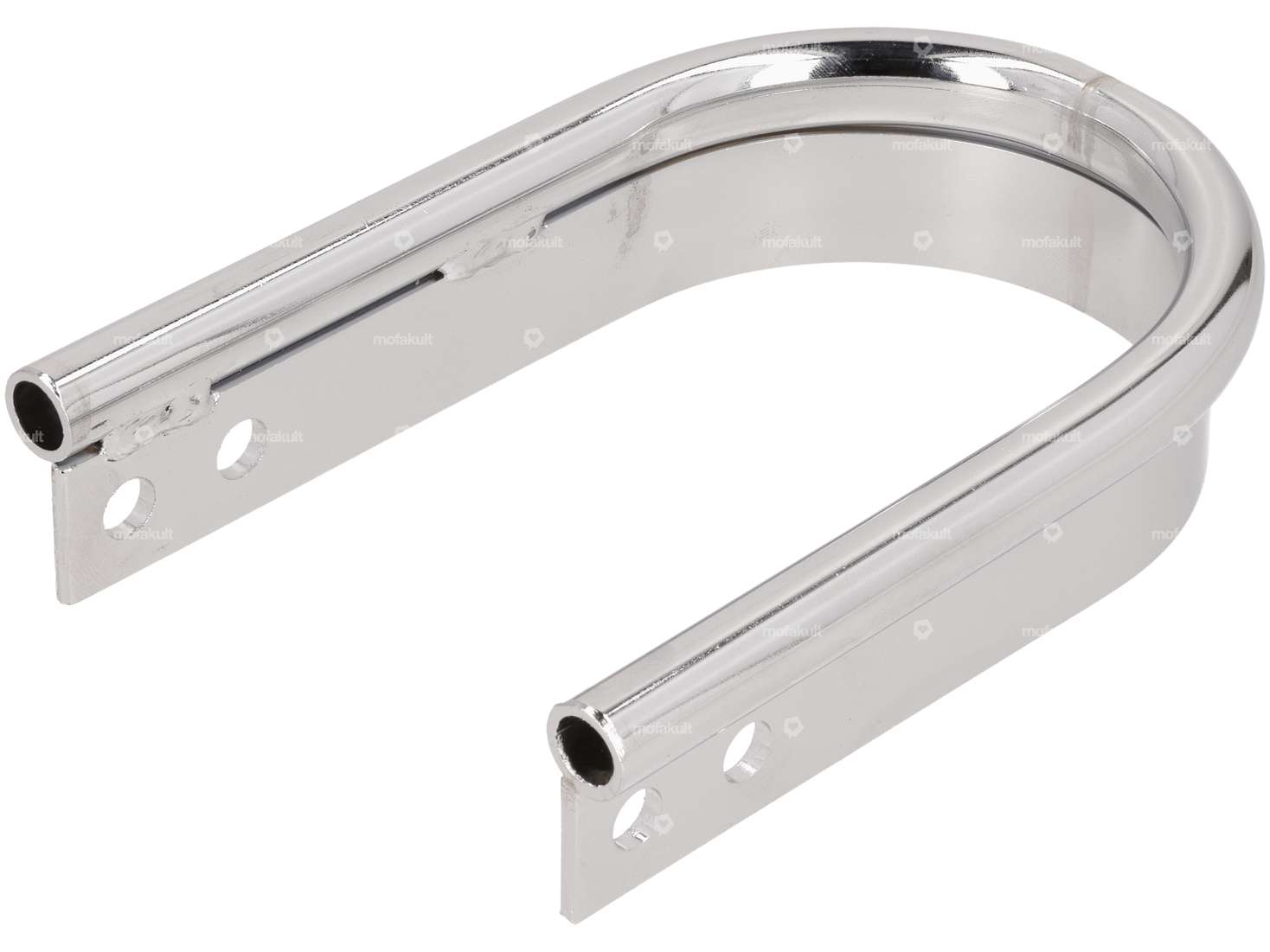

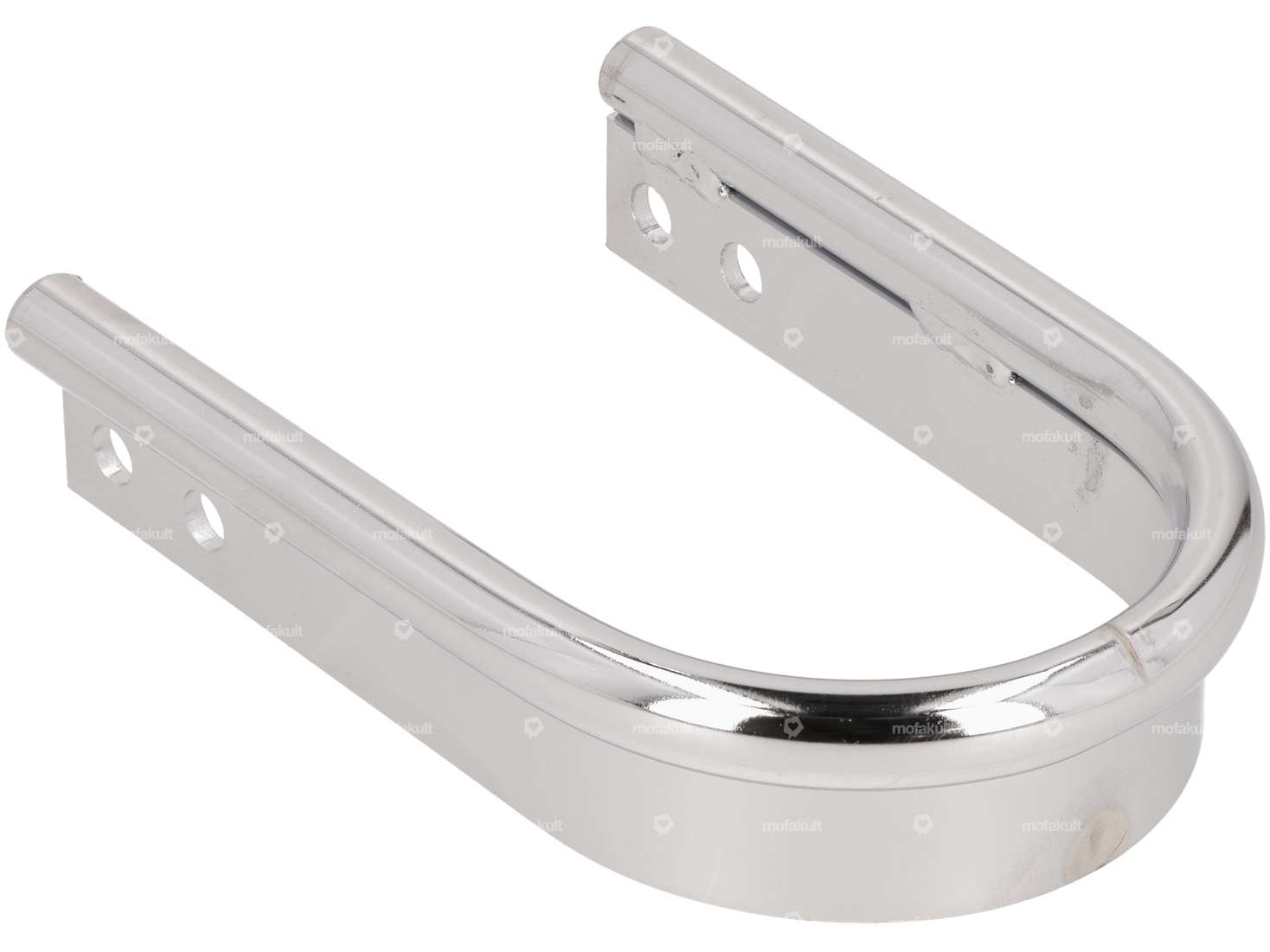

EBR reinforcement arch hydraulic/Staco chrome

Return spring brake plate | Puch Maxi

Spring design: Nose feather · Spring design: Torsion spring · Length spring hook: 50 mm · Leg length: 45 mm · Ø wire: 2.4 mm · Area of application: Original · Material: Spring steel · Area of application: Standard · Surface: galvanized (blue) · Ø inside: 25.5 mm · Ø outside: 30 mm · Total length: 125 mm

Mushroom air filter foam black, Bing SRE (Ø=20 mm)

Material: Foam · Material: Metal · Material: Rubber · Area of application: Tuning · Color: Chrome · Color: black · Filter type: Foam · Ø outside: 61 mm · Length rubber part: 65 mm · Length of filter section: 40 mm · Total length: 105 mm · Ø Internal connection: 20 mm · Mounting type: Bride · Mounting type: Plug connection clamped · Camouflaged: No

Magura set screw M6x34 mm lock nut SW8

Slotted: No · Ø Receptacle: 7.05 mm · Manufacturer: Magura · Ø cable holder: 3.05 mm · Width across flats nut: 8 mm · Width across flats Screw: 8 mm · Material: Brass · Material: Steel · Surface: galvanized (blue) · Surface: nickel-plated · Thread type: M6x1 (standard thread) · Total length: 34 mm · Thread length: 24 mm

Magura adjusting screw brake long

Manufacturer: Magura · Material: Brass · Surface: nickel-plated · Color: silver · Thread type: MF6x0.75 (fine pitch thread) · Drive: Knurled screw · Ø External head: 9.1 mm · Total length: 47 mm · Total length: 65 mm · Thread length: 24 mm · Ø shaft: 6 mm · Shank length: 11 mm

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Reserve level: 70 mm · Mounting type: Union nut

EBR telescopic fork hydraulic silver | Puch

Manufacturer: EWC · Material: Aluminum · Material: Steel · Surface: chrome-plated · Surface: varnished · Color: Chrome · Color: silver · Adjustable: Yes · Ø spars: 28 mm · Spar end distance (center-center): 150 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22.3 mm · Head tube length: 200 mm · Total length: 635 mm · Fork bridge - center wheel axle: 410 mm · Distance brake cam to wheel axle center-center: 35 mm · Thread type: MF26x1 (fine pitch thread) · Thread length: 58 mm

GPO spotlight angular with switch black

Manufacturer: GPO · Area of application: Standard · Bulb holder: P26s · Housing material: Plastic · Color: black · Color: transparent · Tension: 6 V · Tension: 12 V · Thread size: M6 · Lens material: Plastic · Test mark: none · Speedometer recording: 48 mm · Width: 120 mm · Depth: 140 mm · Switch included: Yes · Battery operated: No · Height: 104 mm · Mounting type: Screws · Number of fixing points: 2 pcs

swiing® revival stud bolt set M6 x 106 mm | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.9 mm · Thread type: M6x1 (standard thread) · Total length: 106 mm · Thread length: 13 mm · Thread length: 18.5 mm · Width across flats SW: 10 mm · Drive: External hexagon · Alternative version of the Puch OEM number: 360.1.10.034.1

Cable set cut with adjusting screws | Puch Maxi

Manufacturer: Made in Germany · Material: Brass · Material: Steel · Color: black · Quantity: 4 pcs · Ø Stranded wire: 1.25 mm · Ø Stranded wire: 1.5 mm · Ø Stranded wire: 1.8 mm · Outer shell length: 1120 mm · Outer shell length: 1150 mm · Outer shell length: 1740 mm · Nipple shape: Barrel (transverse) · Nipple shape: Cylinder · Nipple shape: Pears · Total length: 1200 mm · Total length: 1250 mm · Total length: 1450 mm · Total length: 1830 mm

swiing® revival wheel axle set M12x1 x 185 cast rear wheel galvanized | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: MF12x1 (fine pitch thread) · Ø shaft: 11.9 mm · Ø outside: 11.8 mm · Total length: 185 mm · Thread length: 26 mm · Thread length: 52.5 mm · Shank length: 100 mm · Width across flats SW: 19 mm
