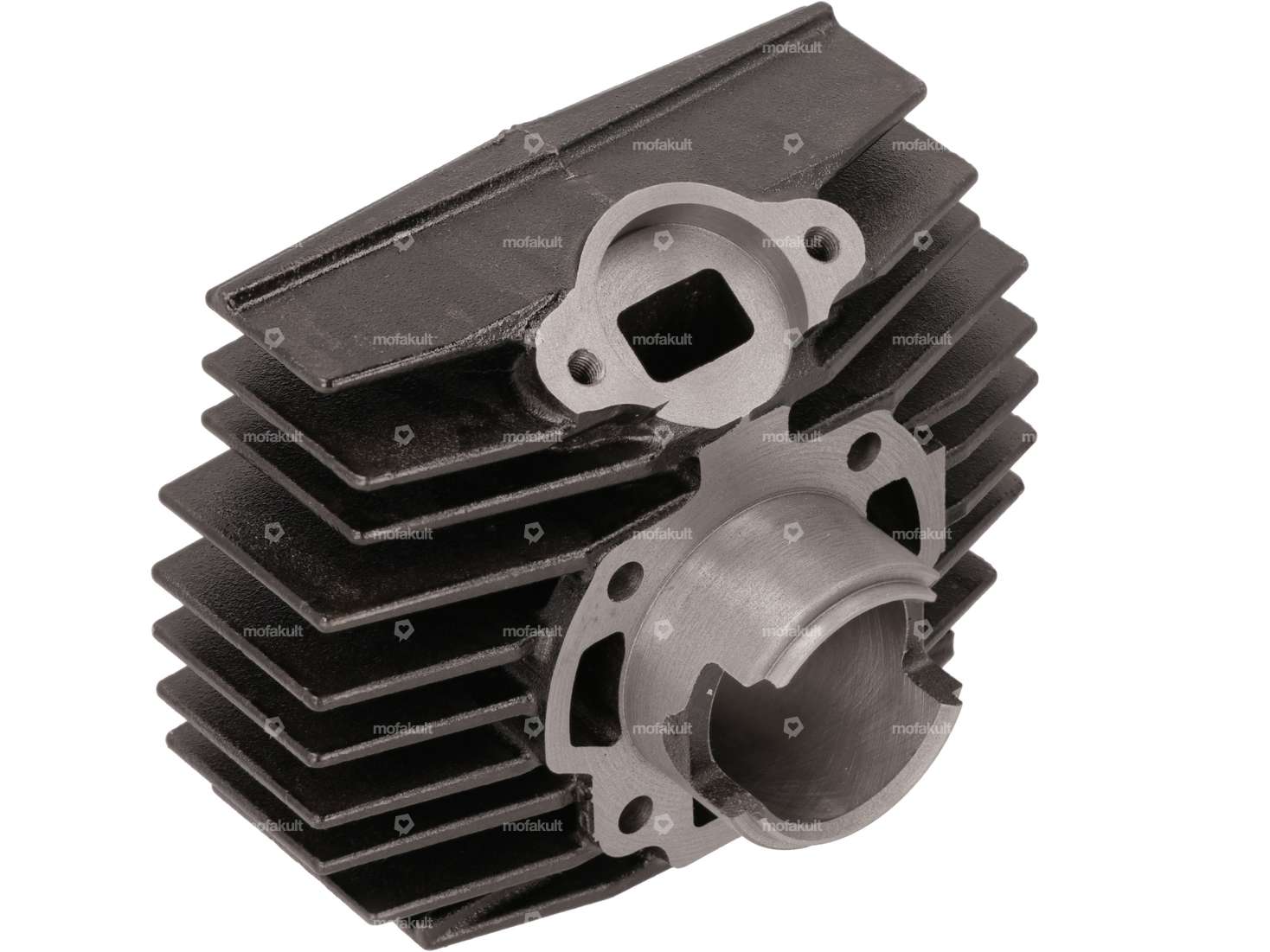

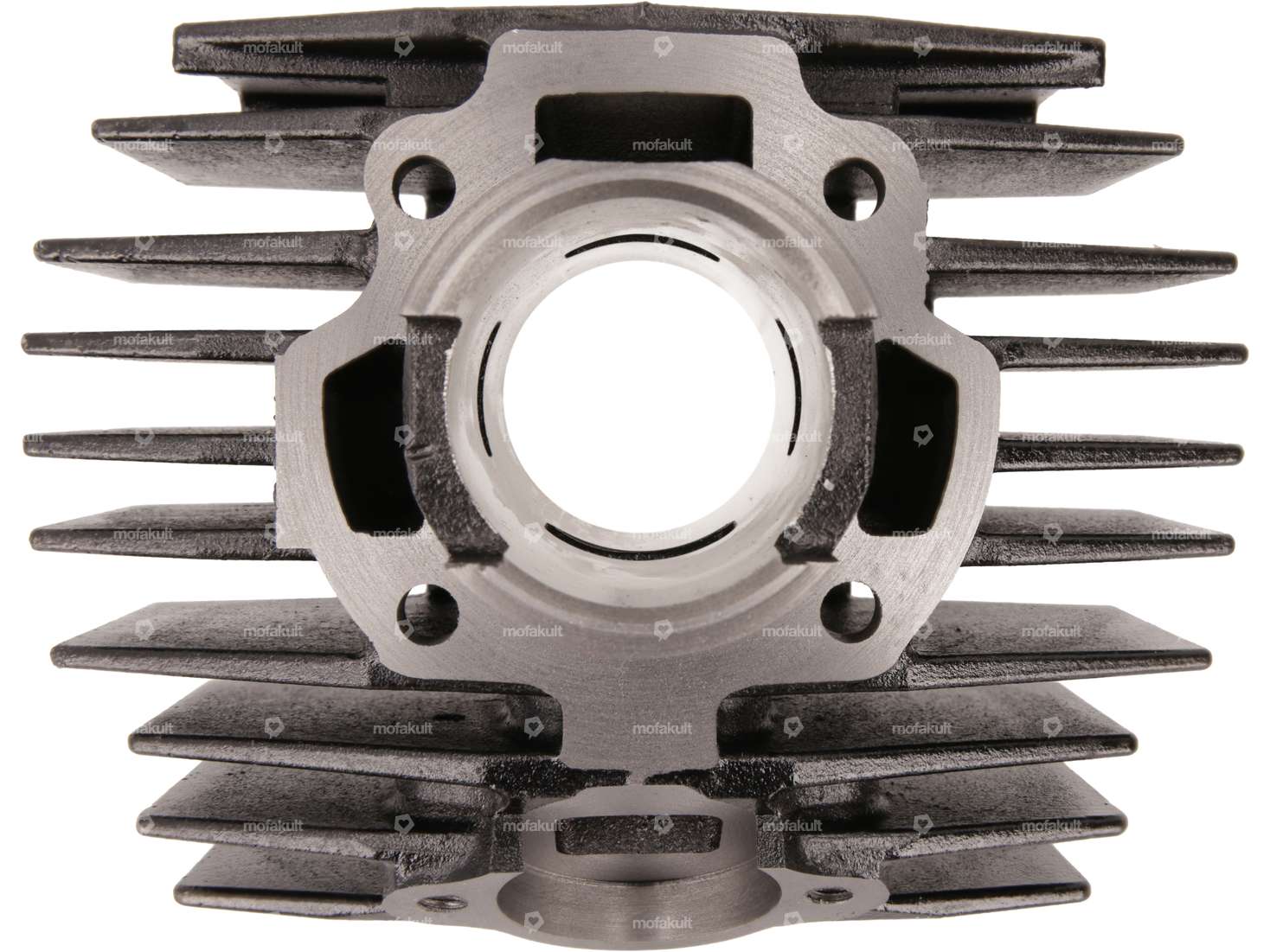

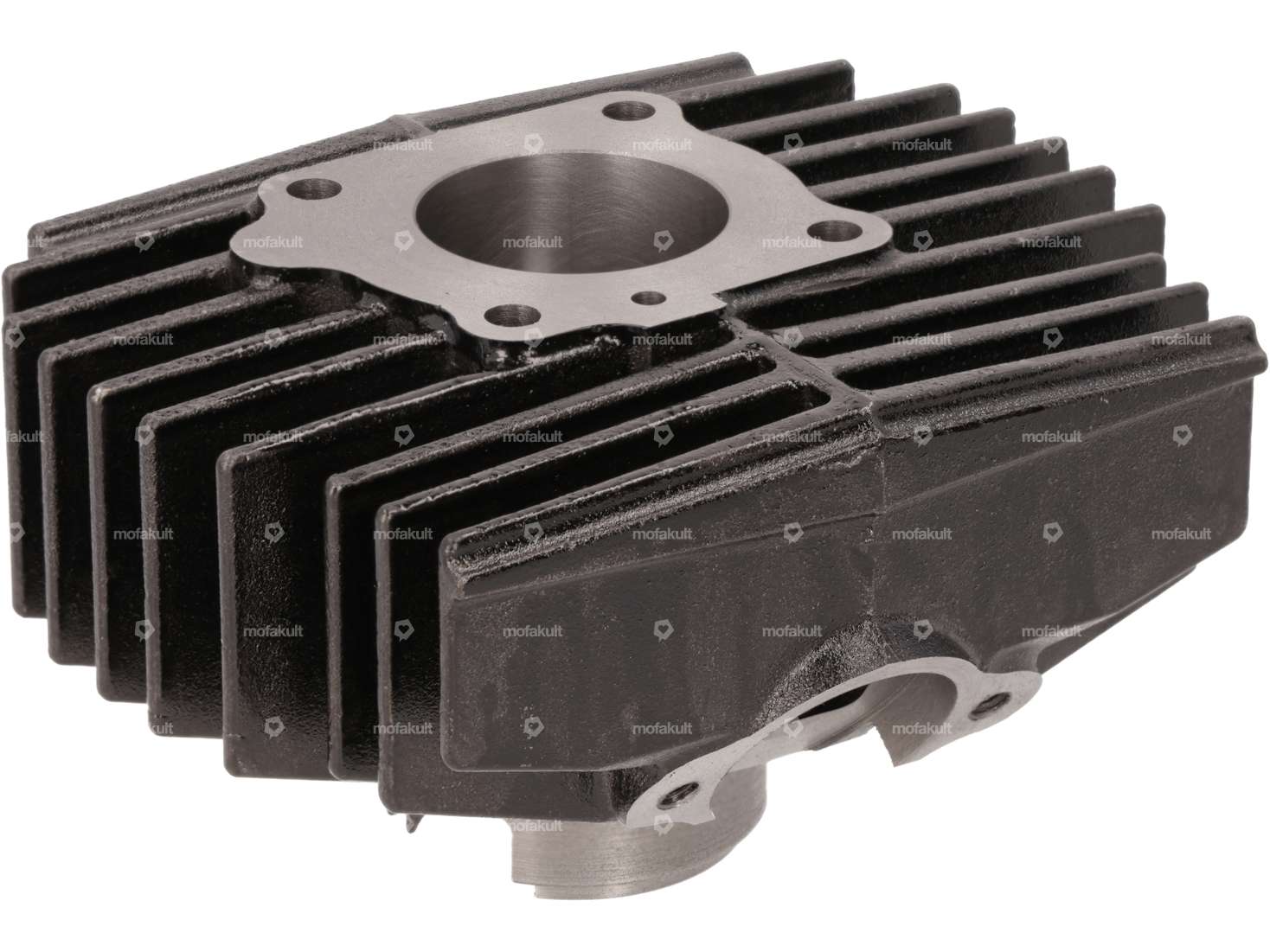

40 mm cylinder suitable for your Honda Camino moped / moped.
The cast steel cylinder is of good quality and is solidly made.
The piston clearance and piston ring clearance should be checked before installation.
Cylinder material: cast iron
Piston material: cast aluminum
Bore: 40 mm
Capacity: 49 cm³
Ø Cylinder base: 50.9 mm
Ø outlet inside: 34 mm
Hole spacing outlet: 46 mm
Thread outlet: M6 x 1
Hole pattern: 48 x 48 mm
Ø stud bolt hole: 7 mm
Piston pin: 10 mm
Decompressor bore: yes

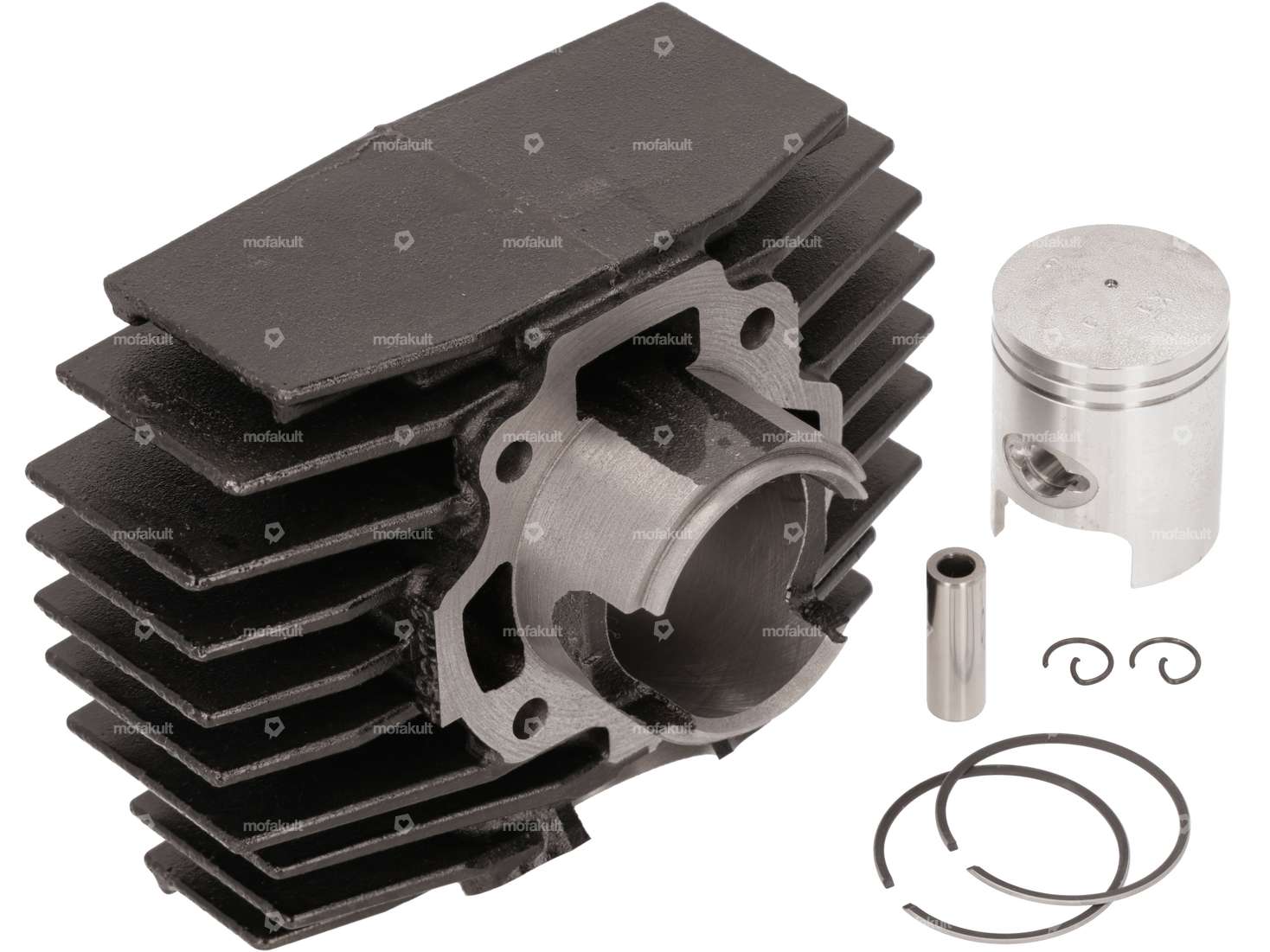

Scope of delivery as per figure 1.
Matching exhaust systems and other practical parts can be found in the accessories section.
Branded product from the manufacturer DMP.
Details
| Nominal diameter | 40 mm |
| Manufacturer | DMP |
| Material | Gray cast iron |
| Camouflaged | No |
| Area of application | Standard |
| Surface | varnished |
| Displacement | 50 ccm |
| Ø piston pin (B) | 10 mm |
| Ø cylinder neck | 50.9 mm |
| Ø Outlet outside | 34 mm |
| Hole pattern [mm] | 48 x 48 |
| Number of fixing points | 4 pcs |
| Outlet type | slanted |
| Hole spacing outlet | 46 mm |
| Thread outlet | M6x1 (standard thread) |
| Decompressor | Yes |
Suitable for the following models
| Honda |
Accessories & related products
Moped fans like you also bought:
Polini air filter | Piaggio Ciao, SI, Bravo, Boxer
Height: 94.7 mm · Manufacturer: Polini · Camouflaged: No · Material: Plastic · Area of application: Tuning · Color: black · Filter type: Foam · Ø outside: 53 mm · Mounting type: Plug connection clamped · Total length: 29 mm · Width: 98 mm · Ø Internal connection: 50.6 mm
EUR 17.30
NTN 6202 C3 ball bearing 15/35/11
Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 11 mm · Manufacturer: NTN · Bearing clearance: C3 · Stock number: 6202 · Bearing type: Deep groove ball bearing · Ø inside: 15 mm · Ø outside: 35 mm · Width: 11 mm · Puch OEM number: 900.4.6202
EUR 6.85

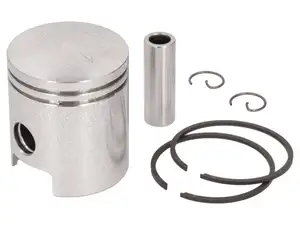

GPO piston 43 mm | Sachs 50/2, 50/3, 50/4
