For: Puch

29361

Barikit piston 39 mm | Puch

Home
| Motor
| Cylinder
| Piston
EUR 64.50

Incl. 21% VAT.

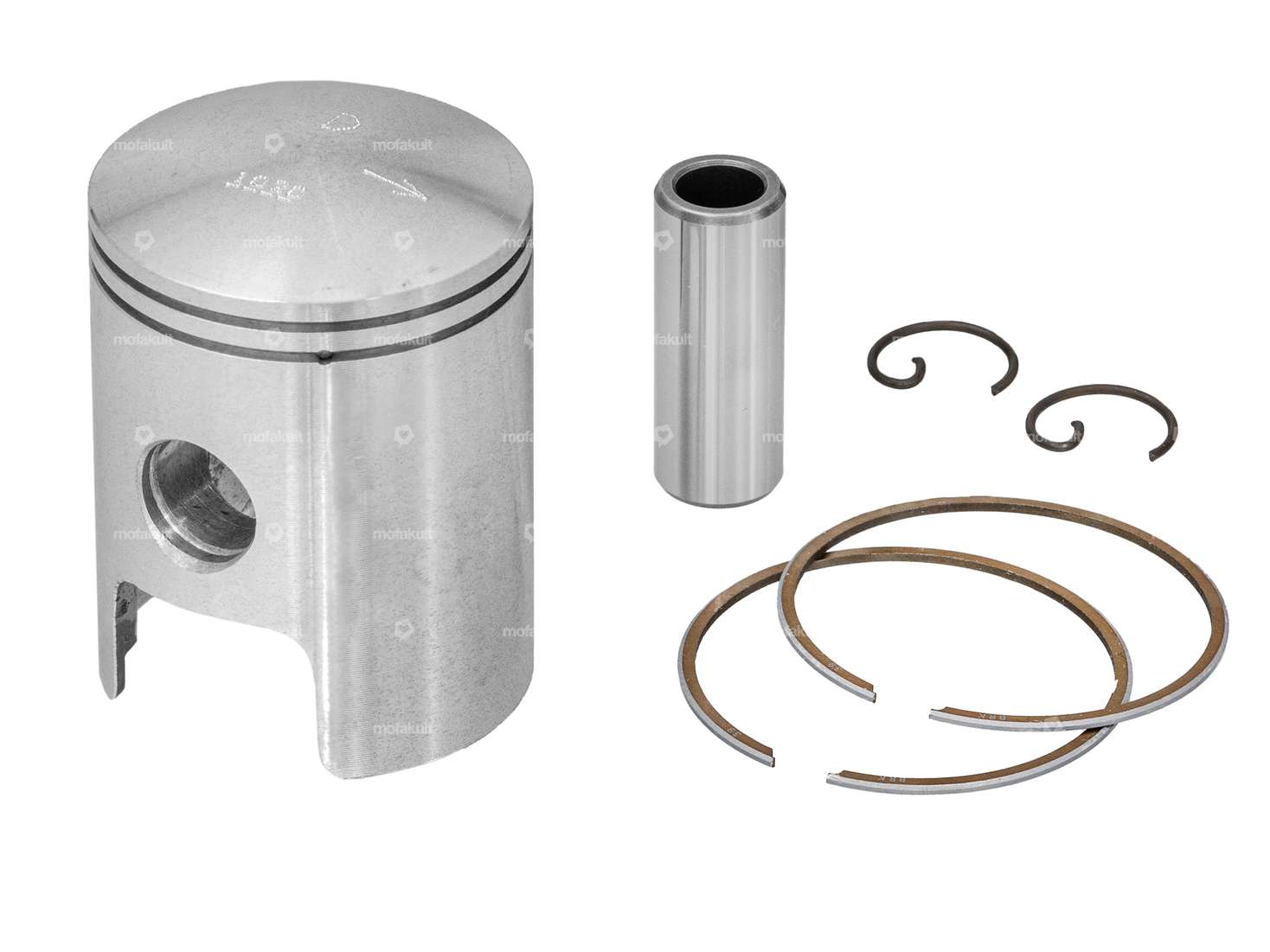

39.0 mm piston with two 1 mm rectangular piston rings with internal locking (IS) for various Puch cylinders on your Puch moped / moped.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the pictures.

The piston kit contains piston pins, piston clips and piston rings.

You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.

Quality product from the Spanish manufacturer Barikit.

Details

ManufacturerBarikite
Ø outside piston (A)38.95 mm
Compression height (C)22.5 mm
Curvature (D)3.5 mm
Total piston height (E)52.2 mm
Number of piston rings (F)2 pcs
Nominal diameter39 mm
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1 mm
Ø piston pin (B)12 mm
Piston weight81 g

Suitable for the following models

Puch

E50

ZA50 (air-cooled)

ZA50 (fan-cooled)

Z50 (X30 Sport)

Z50 (X30 Velux)

2-speed MS, MV, MV50

3-speed VSD, DS, VZ, MC
