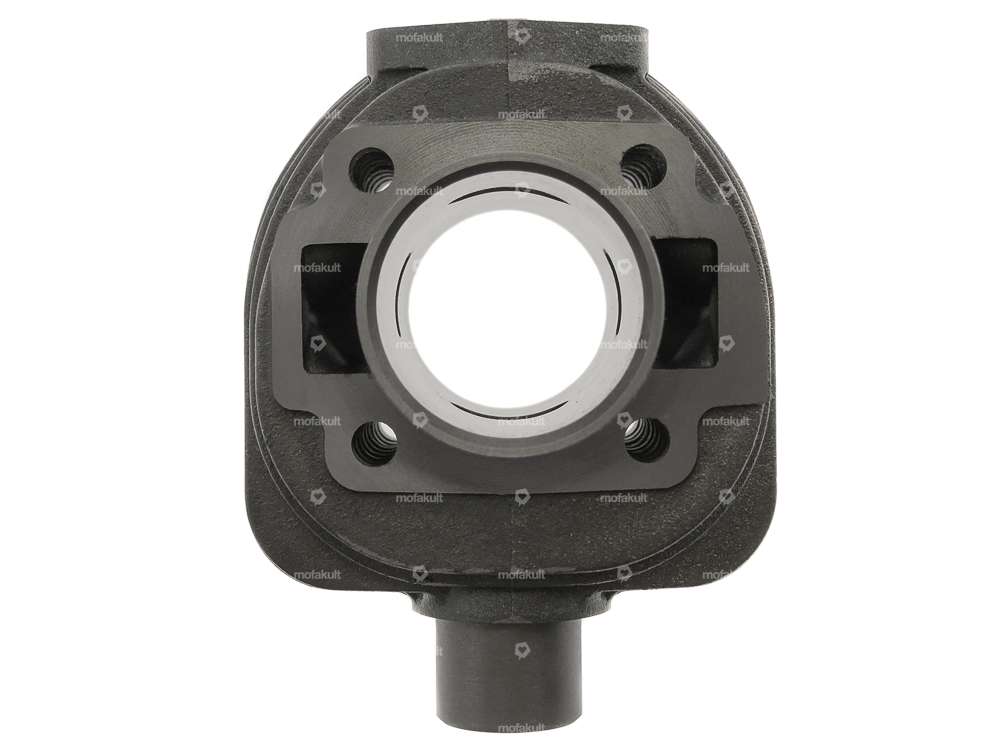

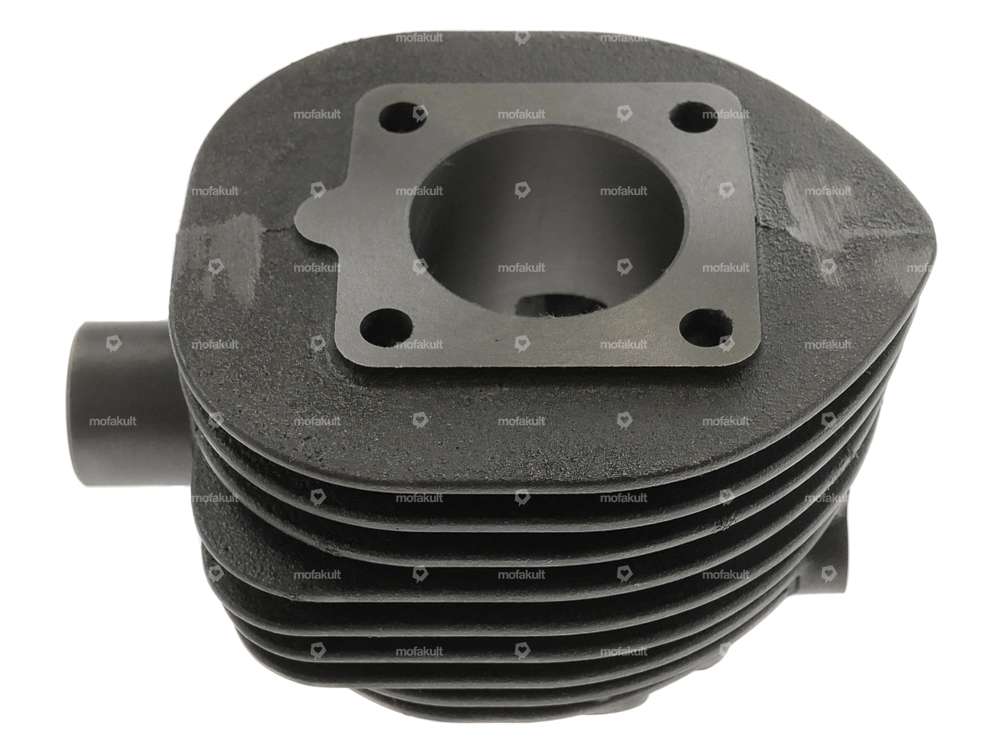

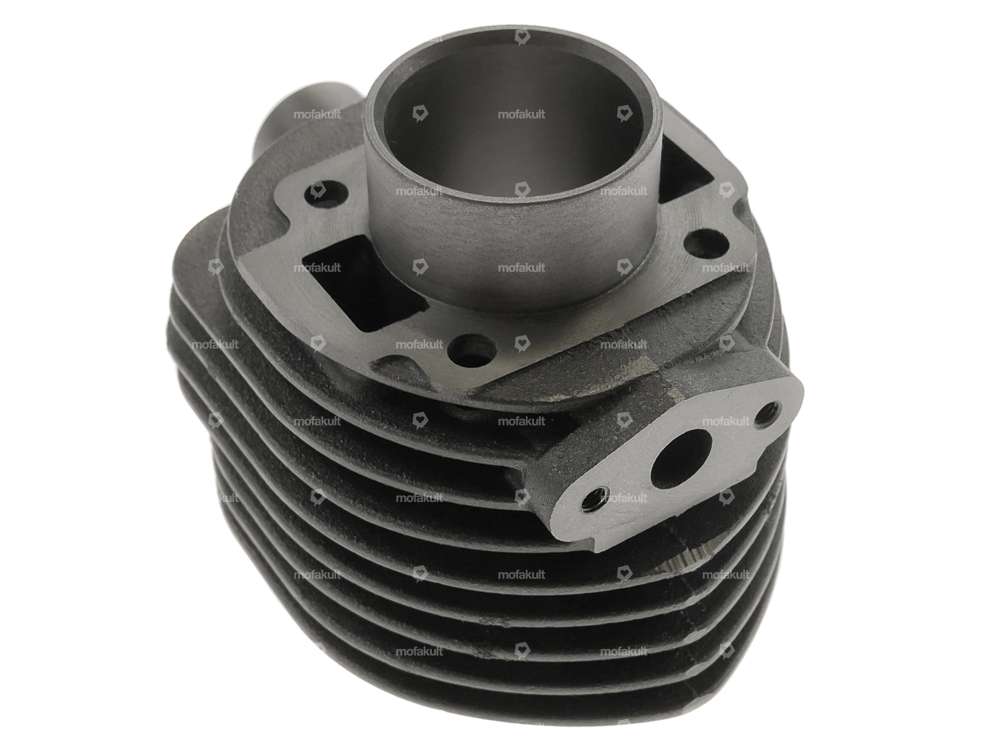

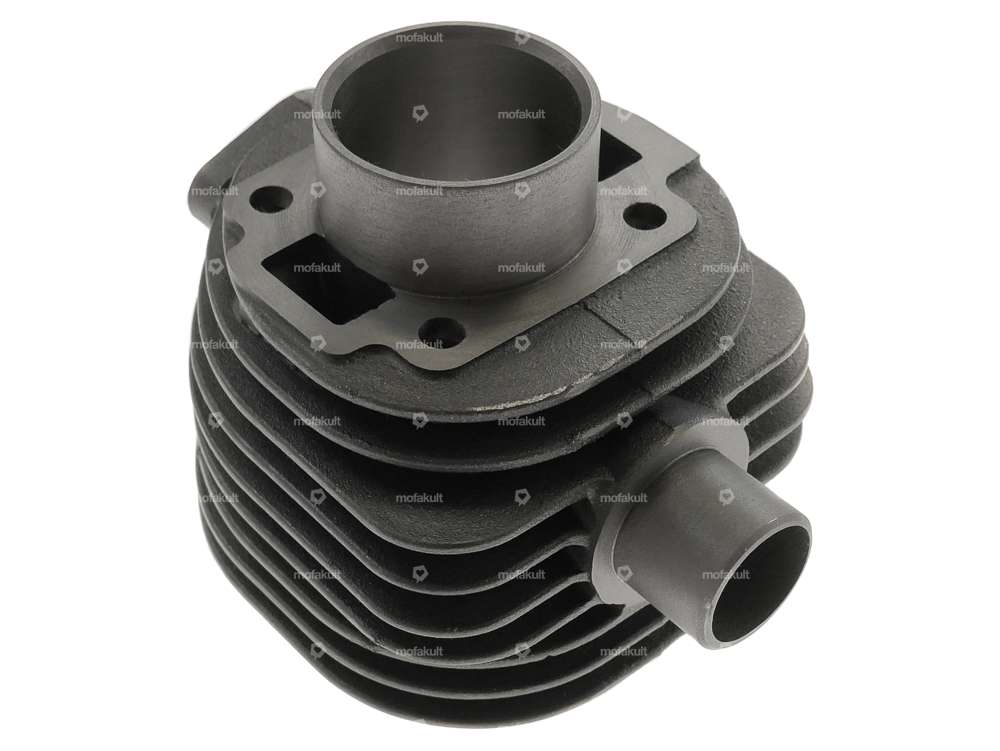

38 mm cylinder suitable for ILO / JLO mopeds.
Ø connection exhaust: 24.85 mm
Hole spacing threaded intake manifold: 31 mm
Distance between stud bolt holes diagonal: 60 mm (square)
Attention: This cylinder does not fit the Swiss engines, the one stud bolt hole must be adapted as this is slightly offset on the CH engines.

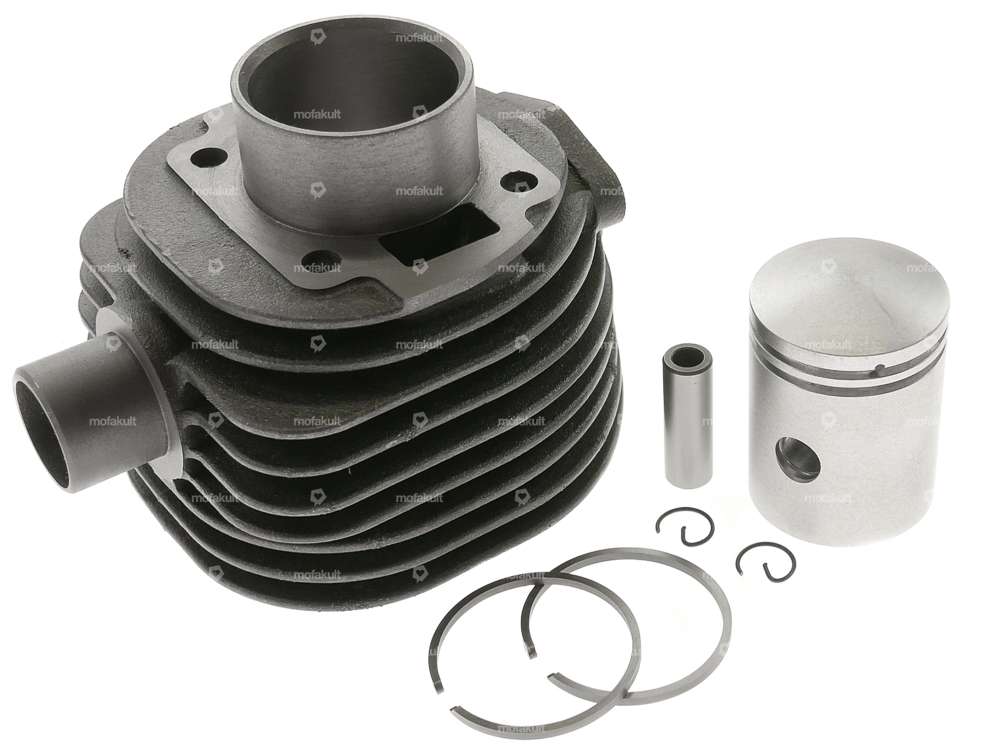

The gaskets are not included, scope of delivery according to figure 1.
Details
| Nominal diameter | 38 mm |
| Material | Gray cast iron |
| Area of application | Standard |
| Surface | sandblasted |
| Displacement | 50 ccm |
| Ø cylinder neck | 44 mm |
| Ø Outlet outside | 24.85 mm |
| Hole pattern [mm] | 42 x 42 |
| Ø piston pin (B) | 10 mm |
| Hole spacing inlet | 31 mm |
| Outlet type | clamped |
| Number of fixing points | 4 pcs |
| Camouflaged | No |
Suitable for the following models
| ILO / JLO |
